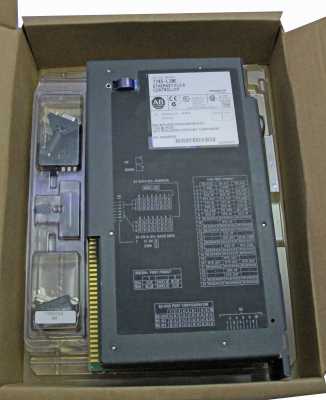

The 1785-L20E is an Ethernet programmable controller by Allen-Bradley which has a 16K word SRAM and it is connected to the I/O chassis controller for controlling the inputs and outputs. The controller has a 25-pin D serial port for communication which supports the EIA RS-2332C and RS-423 serial connection. It also has a 15-pin Ethernet port which has a transmission speed of 10 MB for connecting to various devices on the network and communicating with them. The 1785-L20E has an approximate weight of 1.43 Kg and it can sustain a shock of 30G. The ambient operating temperature for the 1785-L20E should be between 0 and 60 degrees Celsius and the humidity should be non-condensing within a range of 5 to 95%.

The maximum I/O scan time of the controller is 10 milliseconds at 57.6 kbps scan speed and 3 milliseconds at 230.4 kbps. The 1785-L20E must be installed and replaced according to the instructions provided by the manufacturer in the installation or the troubleshooting manual by a person trained and familiar with the system to avoid any damage to the equipment. Make sure the power supply is turned OFF when installing the controller to prevent any damage due to electric shock. It is recommended to follow the electrostatic discharge safety guidelines to prevent any electrostatic discharge and damage. The connections to the device must be secured and should be done as stated in the manuals. The controller also has a battery-backed static RAM and it is UL, CE, CSA, and C-tick certified.

Other Automation PLC-5

SKU 2175020  UPC 0799705796508

AB EtherNet/IP PLC-5/20 Cntrlr. 16K Word 1785L 1785L2 1785L20

Troubleshooting and Product Information for 1785-L20E

Download product information, troubleshooting guides and operation manuals to get your PLC operational.

Other Automation
PLC-5 1785-L20E
Weight: 2 Lbs
