DVT 544M

Buy NowDVT 544M
DVT 544M
DVT 544M Wiring

Rated 4.5/5 based on 11 ratings.
  • DVT 544M
  • DVT 544M Wiring

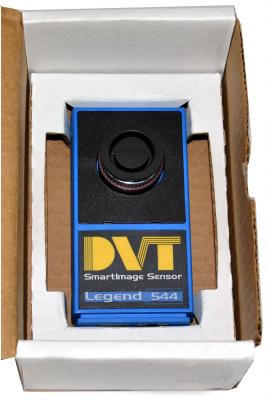

DVT-544M is a 2-pound camera sensor developed by DVT Cognex company. The sensor comes with an intellect software which is used for inspecting the presence or absence of parts, detecting defects, positioning and precise measurement, to mention just but a few. It can also be used in programable tools for tailored user needs.

Sensor specifications

The DVT 544M measures 112mm x 60mm x 30mm not inclusive of the spectrograph for the spectrograph sensor. The sensor requires 24V DC power supply and 300mA current. Power is supplied by a separate power unit which is sold separately. If the LED lights on the DVT are required, an additional 30W is required.

For operating temperatures, the sensor should be placed in an area of between 0-45 degrees Celsius, which is 32-113 degrees Fahrenheit. For best performance, a non-condensing atmosphere is preferred with a maximum of 50 degree Celsius. Its electronic exposure is 10μs. Moreover, it comes with 2 external RJ-45 ports. One 10 pin RJ-45 connector is for power supply & digital input and output. Another RJ-45 (10/1000) is for Ethernet TCP/IP communications. The digital input/output ports are 24V DC regulated. They have 8 configurable inputs and outputs. NPN inputs provide current sinking while PNP provide current sourcing. Inputs can sink currents up to 1.5mA while outputs source a maximum of 50mA. A RAM of 128 MB is responsible for handling all the processes. In flash memory, data is kept persistent such that in the event of a power failure, data is preserved.

Installation of intellect software

Before installation is done using a begins, ensure your PC meets the following requirements:

Windows XP and later versions (7/8/8.8/10) with a CPU with minimum CPU of 400MHz Pentium. A hard disk space of at least 100 MB is required and an RJ-45 Ethernet 10/100Mbit card for I/O communication with the DVT sensor. To install the software, install the CD containing the software. It will automatically launch the wizard. Should the automatic wizard fail to run, navigate to the drive letter associated with the CD ROM and run the ‘setup.exe’ file. Thereafter, follow the installation instructions to the end. After installation, the program files will be in C:Program FilesCognexDVTintellect1x path.

Connecting to the sensor

To connect to the DVT 544M sensor, plug a CAT 5 Ethernet cable to an RJ-45 port on your PC and plug the other end to the LAN. Also plug the sensor to the LAN for it to automatically obtain an IP address. The PC and the sensor communicate via the TCP/IP protocols- Transmission Control Protocol / Internet Protocols. For the two to communicate, the user must setup a unique IP address in the same subnet for both devices.  The sensor comes pre-configured with a default IP address, which must be changed.

To set up your PC and DVT with the right IP addresses:

Launch the intellect software. The network window will automatically pop up. Open the ‘Ethernet Adapters’ folder. This will display a list of available ethernet adapters on your PC. Take note of your PC’s IP address and subnet mask. On Windows XP, Explorer will identify the sensor’s IP. You can then set a static IP and write it down so that you don’t forget. After setup, the user can use the sensor’s IP address to connect to it and further customize the settings via a web interface.

DVT Cognex Vision DVT Cognex

SKU 2177041  UPC 0546110252583

DVT LEGEND 544M Cognex NO LGT. Note: Legend 544 Hi-Res SmartImage Sensor

Troubleshooting and Product Information for DVT 544M

Download product information, troubleshooting guides and operation manuals to get your PLC operational.

DVT Cognex Vision
DVT Cognex DVT 544M
Weight: 2 Lbs
Dimensions: 6"x6"x3"In
MSRP Price: $5,995.00
