Technical Specifications for IC670CHS102

ManufacturerGE Fanuc
SeriesField Control
Part NumberIC670CHS102
Product TypeI/O Terminal Block with Box Terminals
Compatible DevicesGE Fanuc IC670 Field Control devices
Hot SwappingSupported
Maximum Number of I/O Modules2
Field I/O Terminal Points16
Operating Temperature Range-20 to 70 degrees Celsius
Bus Interface Unit (BIU) Version2.1 or later

I/O Base, Box Style, Hot Insertion GE Fanuc Field Control Rack IC670C IC670CH IC670CHS IC670C

The GE Fanuc IC670CHS102 I/O Terminal Block with box terminals is a type of PLC backplane that is specifically designed and manufactured by GE Fanuc to be used with their IC670 Field Control family of I/O modules. Up to 2 independent I/O modules can be installed in each terminal box by simply inserting them into an available compatible slot, and this is easy since the modules come with a special set of keys that allow them fit only into the proper slot. The GE Fanuc IC670CHS102 I/O Terminal Block supports hot swap operations, which allows for a quick troubleshooting procedure, because no power disconnection is necessary when connecting or disconnecting I/O modules. Once the I/O modules are mounted on the base terminal block, they should be secured in place with screws in order to provide vibration resistance.

The GE Fanuc IC670CHS102 I/O Terminal Block with box terminals uses 16 screw terminals to receive external wiring from field inputs and outputs. For data communication with the main Programmable Logic Controller (PLC), the GE Fanuc IC670CHS102 I/O Terminal Block needs to use a Bus Interface Unit (BIU) that is version 2.1 or later. Hot insertion or removal of I/O modules should not be performed if the base terminal block is installed in a hazardous location, because of the risk of sparks which may contribute to an accident, personal injury, equipment damage, or fire. The operating temperature of the I/O terminal blocks should be maintained between -25 and 70 degrees Celsius (-13 to 158 degrees Fahrenheit) in order to guarantee the proper functioning of the device.

Technical Information

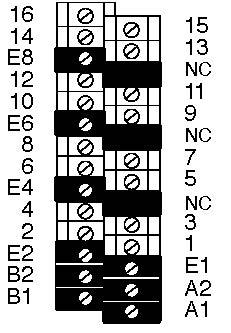

The IC670CHS102 terminal block is an I/O terminal block that is a product of GE Fanuc. It belongs to the GE Field Control series, and it supports hot insertion. One terminal of the GE Fanuc IC670CHS102 I/O base allows for the installation of 2 modules maximum, and the modules are held on the terminal block by a screw for vibration resistance. Also, these modules can be changed without disturbing the field wiring. There are 3 isolated groups for each of the I/O modules. The first is Group A and it is internally connected, the second is Group B and it is internally connected and typically used for power connections. The third group is Group E and it comprises 5 common terminals that are internally connected, and it is isolated from the point and power terminals. These modules can also be used as necessary for the application wiring. The terminals 1 to 16 are used for the wiring of the inputs and outputs.


The GE Fanuc IC670CHS102 I/O terminal block comes with a projecting alignment slot at every point of a module. This terminal block needs to be used with modules with a projecting tab that is made to fit into an alignment slot. The IC670CHS102 I/O terminal block also needs a Bus Interface Unit (BIU) that is version 2.1 and above for the hot insertion as well as for the hot removal of the modules from the input and output station. This terminal block is a generic wiring base that is designed to provide functions such as backplane communication, module mounting and terminals to enhance user connections.
