IC670GBI002

Rated 4.6/5 Based on 15 ratings.

Rate your purchase of the IC670GBI002
Loading...

SKU 2176441  UPC 0799705793101

disclaimer

MSRP $3995

New

  ON SALE !
$2950

Save $1,045

5 In Stock

✓  2 Year PDF Supply Warranty

*Need a Specific Revision?

Reman

$1250

Save $2,745

3 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Repair Service

$755

Save $3,240

5-10 Days

✓  2 Year PDF Supply Warranty

*What is Fast Repair?

Technical Specifications for IC670GBI002

ManufacturerGE Fanuc
SeriesField Control
Part NumberIC670GBI002
Product TypeBus interface module
Maximum Data Transfer per Scan128 kilobytes in, 128 kilobytes out
Genius Datagram CommunicationsYes
MountingTerminal block
Hot SwappableYes
Operating Temperature0 to 55 degrees Celsius
Storage Temperature-40 to 85 degrees Celsius

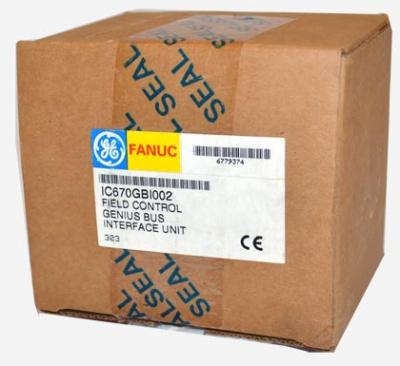

Genius Bus Interface Unit (BIU)GBI002 GE Fanuc Field Control IC670G IC670GB IC670GBI IC670G

The GE Fanuc IC670GBI002 module is a Field Control bus interface unit. It is used for interfacing of host PLC or computer with GE Field Control I/O. During each scan, the bus interface unit can exchange a maximum of 128 KB of input and 128 KB of output. The IC670GBI002 module is also capable of handling Genius datagram communications. The unit is capable of carrying out diagnostic tests on connected I/O modules and also on itself. The diagnostic information is relayed to a host device or to a handheld monitor. The IC670GBI002 module mounts on a terminal block for bus interface units. The wiring for power connections and single/dual communications cables terminates on the compatible terminal block.

The IC670GBI002 module can be replaced without needing to reconfigure the I/O wiring. This interface unit also supports hot insertion and removal. When installed according to all of the recommended guidelines, the IC670GBI002 module is resistant to the noise levels that are typically present in industrial applications. The working temperature range for the module is from 0 to 55 degrees Celsius and the storage temperature range is from -40 to 85 degrees Celsius. The non-condensing relative humidity range is from 5 to 95% for operation and stroage. The IC670GBI002 module is rated for a minimum mean time before failure of 183,000 hours. The nominal DC input voltage is 24 Volts DC and the maximum power at a full load is 16.8 Watts. The holdup time for the unit is 10 milliseconds. The nominal AC input voltage is 115 Volts AC. The terminal block for the bus interface unit requires a maximum of 16 milliamps of current and it is rated for minimum mean time before failure of 600,000 hours.

Technical Information

The Genius IC670GBI002 interface is a 24 Volts DC Bus Interface Unit (BIU) manufactured as part of the Field Control series by the GE Fanuc. A BIU helps to interface the Field Control I/O modules to the PC or host PLC via the Genius bus. It can exchange up to 128 bytes of input data as well as 128 output data bytes in every bus scan. The Genius IC670GBI002 BIU is the core of the GE Field Control series because it provides functions such as I/O scanning, intelligent processing, and configuration of the features of 8 I/O modules. The BIU and its modules make up a Field Control system and the station. Generally, this series comes with many benefits and features ranging from better uptime, low costs, feature flexibility, DIN rail mounting, distributed I/O, and installation and maintenance. Other features are minimal spare parts requirements, reduced wiring, and an open architecture that is adaptable to a wide range of networks.



The GE Fanuc IC670GBI002 Bus Interface Unit features a BUI terminal block which supports connections for single and dual communication cables or power wiring cables. This unit comes with an integral bus switching circuitry that allows for the use of BUI on the redundant or dual Genius Bus without an external bus switching module. This BIU terminal block can store the configuration parameters that have been picked for a station. A Bus interface unit like the IC670GBI002 Bus Interface Unit can be used on the bus and controlled by bus controllers or the redundant CPUs. It also allows the device to be used on a dual bus.
