115V Isolated Input Module (6 points) GE Fanuc Series 6 Board w Face Plate IC600BF IC600B

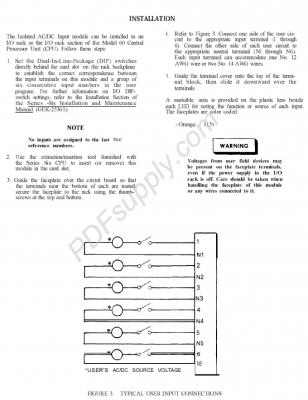

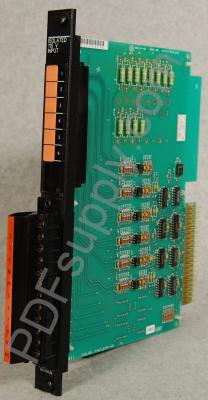

The GE Fanuc IC600BF810 input module is an isolated 115 Volts AC/DC input module. The IC600BF810 input module is compatible with GE Series Six PLCs. The module detects bipolar AC and DC voltages that are controlled and supplied by the users. The IC600BF810 input module has 6 inputs and each input has its own neutral circuit. Every input circuit on the module is isolated from every other input circuit on the module. The module inputs are also isolated from the CPU circuitry on the GE Series Six PLC. The input circuits on the IC600BF810 input module contain a rectifier, an opto isolator, a noise filter to minimize common mode transients, and a one-shot Schmitt Trigger which fires when an AC or DC voltage falling in a certain range is detected.
The dimensions of the IC600BF810 input module’s circuit board are 8.15 x 11 inches and the dimensions of the faceplate are 12.46 x 1.175 inches. The power requirements for the IC600BF810 input module are 104 milliamps at 5 Volts DC. The power for the input devices needs to be user-supplied. The range of “on” voltages is from 90 to 30 Volts AC/DC and the range of “off” voltages is from 0 to 30 Volts AC/DC. The input loading is 20 kiloohms. The respective delay times are 6 to 20 milliseconds for switching off to on and 20 to 50 milliseconds for switching on to off. The recommended operating temperature range for the input module is from 0 to 60 degrees Celsius. The recommended storage temperature range is from -20 to 80 degrees Celsius. The IC600BF810 input module can be used to monitor inputs from motor controls, cam switches, relays/contactors, limit switches, and toggle switches.
