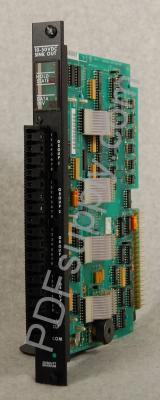

5V TTL Output Module with Lights (32 points) Series Six Board with Face Plate IC600B IC600BF
The product code IC600BF921 is used for a 5 Volts TTL output module that has been designed and produced by GE Fanuc. The module comes with both a circuit board and a faceplate. This high-density TTL-level output module is available through GE Series Six and it supports up to 32 output connections. The IC600BF921 output module has status indicators and it is intended for installation in the supported rack (an I/O rack or a Series Six Plus CPU rack). The module needs to be installed with the proper DIP switch setting and the proper configuration of the jumpers on the circuit board. The module’s LED indicators indicate the on and off states of the outputs and whether the output data is inverted or non-inverted.

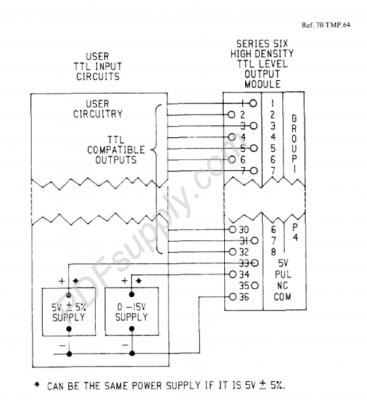

The IC600BF921 module requires a power supply of 5 Volts DC that is supplied by the compatible rack. The maximum current is 180 milliamps and the maximum number of power units that is supported is 3. Additionally, the voltage ripple of the user-supplied power is 0.25 Volts DC while the current rating is 550 milliamps. The on-state output capabilities of the IC600BF921 module include 25 milliamps per output for compatibility with the TTL (rated at 0.5 Volts DC) and 50 milliamps per output point with a maximum voltage of 1 Volt DC. The off-state output when the output is high includes an open collector operation for situations when Terminal 34 is open. The dimensions of the circuit board are 208 x 280 millimeters (8.1 x 11 inches) while the faceplate has the following dimensions: 317 x 30 millimeters (12.4 x 1.1 inches). The operating temperature range of the unit is 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit).
