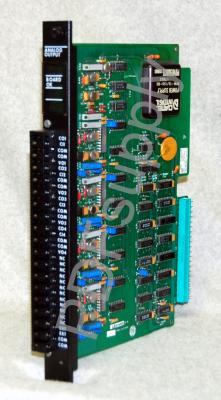

0-10Vdc Analog Output Module (4 channels) Series Six Board with Face Plate IC600B IC600BF
The analog output module with catalogue number IC600BF941 is manufactured by GE Fanuc and part of their Series Six product line. This module comes with faceplate and it has 4 available output channels. The module operates on a voltage range of 0 to 10 Volts but the product series offers other voltage ranges as well. These analog output modules are available with 2 other power ranges to be exact: -10 to 10 Volts and 4 to 20 milliamps. The IC600BF941 module is generally used for motor speed and process control applications. The module is a cost-effective component that requires minimal space on the I/O rack. The module can handle data conversion from 12 data bits with a resolution of 1 part in 4096. Additionally, the IC600BF941 module provides electrical isolation through a data path which is optically coupled.
The IC600BF941 analog output module has an accuracy rating that includes linearity of +/- 0.012% of the full scale. The output load capacitance of the module is a maximum of 750 pF. The IC600BF941 module is built for industrial applications and it is designed in accordance with all applicable industrial standards. The specified operating temperature range is 0 to 60 degrees Celsius or 32 to 140 degrees Fahrenheit while the storage temperature range is -20 to 80 degrees Celsius (-4 to 176 degrees Fahrenheit). The tolerable relative humidity range for the module is 5 to 95% (non-condensing). Like most of the modules from the same series, the IC600BF941 module also requires an I/O rack power supply with 5 Volts DC voltage and a current rating of 1.5 Amps. Additionally, the module supports an optional power supply that is provided by the users.
