IC660BBD110

Buy NowIC660BBD110
IC660BBD110

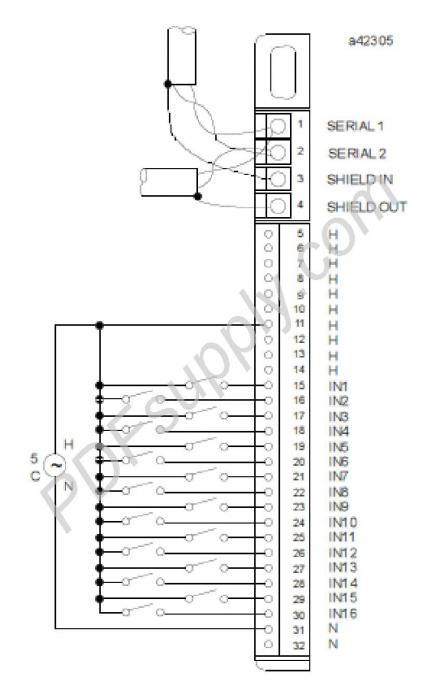

IC660BBD110 Wiring

Rated 4.8/5 based on 23 ratings.
  • IC660BBD110
  • IC660BBD110 Wiring

Product Description


The IC660BBD110 is a low leakage, discrete input block weighting 4 lbs., manufactured by GE Fanuc. It comes with 16 points and is rated 115 Volt AC with an input and operating voltage range of 93-132 VAC and a frequency of 47-63 Hz. This block has a storage temperature range of -40 degrees Celsius to +100 degrees Celsius.

LEDs on the IC660BBD110 input block work together with diagnostic software to prompt or alert the user if a switch fails, if temperature is above threshold levels, or if a load exceeds design parameters. Input thresholds for each block can be programmed. If an LED displays ON for an input circuit, this indicates threshold voltage. In the case of output circuits, a lit LED indicates that the specific circuit is working normally as expected via commands from the CPU. The I/O LED emits steadily when the CPU is running and communicating.

Fault reporting to the CPU can be enabled or disabled on a circuit-by-circuit basis. If fault reporting is disabled, data that would have gone to both the CPU and the handheld monitor is sent only to the handheld monitor. Distribution of IC660BBD110 block’s input and output circuits can be configured as either all output, input, or a combination of the two. The user should always disconnect power first before wiring to ensure safe removal of the block.


Technical Specifications


Rated Voltage: 115 volt AC
# of Points: 16
Input Range: 93-132 VAC
Load Current: N/A
Operating Voltage: 93-132 VAC
Points per Common:   Two groups of 8



GE Intelligent Platforms / GE Fanuc GE-IP Genius I/O

SKU 2170314  UPC 0381174768515

Part Number: IC660BBD110 / ic660bbd110
Mfr/Brand Name: GE Automation
Mfr Number: IC660BBD110 / ic660bbd110
Type: 115 volt AC Discrete Input Block, 16 Circuits

Troubleshooting and Product Information for IC660BBD110

Download product information, troubleshooting guides and operation manuals to get your PLC operational.

New IC660BBD110
Price: $1,850
87 In Stock
1 Year PDF Supply Warranty

*Need a Specific Revision?

Reman IC660BBD110
Price: $355
20
In Stock

2 Year PDF Supply Warranty

*What is Remanufactured?

Save
 81%
Repair Your IC660BBD110
Price: $255
1 Year PDF Supply Warranty
Call For Assistance
1-800-360-6802

Other IC660BBD110

Available Revisions:

Confirm Your Revision Number

1C660BBD110 , GEFIC660BBD110 , CIMIC660BBD110

Specifications

Block Type:

16 circuits, inputs only

CatalogNumbers:



115VAC 16 Circuit Input Block

IC660BBD110

TerminalAssemblyOnly

IC660TBD110

ElectronicsAssemblyOnly

IC660EBD110

Size (height x width x depth):

Weight:

LEDs (I/O block): LEDs (each circuit):

8.83” (22.44cm) x 3.50” (8.89cm) x 3.94” (10.00cm)

4 lbs. (1.8 Kg)

UnitOK,I / OEnabled

Reflect state of input (logic side)

Input to ground (or serialbus) isolation

1500V

Terminal board rating (input or feedthrough current)

5.0Amps

HeatDissipation:

28 Watts maximum with 16 inputs on at full current.

Operatingvoltage:

93–132 VAC

Frequency:

47–63 Hz

Requiredpower (block only):

80mAmaximumblockcurrent, plus 200mAmaximum input circuitcurrent

Power Supply Dropout Time:

1 cycle (16.7mS at 60 Hz / 20mS at 50 Hz)

InputCharacteristics:



Input off state, input on state

Programmable threshold (25% to 85%)

Inputimpedance(typical)

11.6Kohms

Input open wire

Programmable threshold (25% to 85%)

Input shorted wire

Fixed  10%–90% thresholds

Input processing time (typ)

1mS (plus selectable filter time)

Selectable input filter times

10 to 100mS in 10mS increments

Inputdiagnostics

Open Wire, Short Circuit

Environmental:



Operatingtemperature

0C   to   +60C   (32F   to  +140F)

Storagetemperature

–40C   to    +100C   (–40F   to   +212F)

Humidity

5% to 95% (non–condensing)

Vibration

5–10 Hz 0.2” (5.08mm) displacement, 10–200 Hz at 1G

Troubleshooting IC660BBD110

Troubleshooting information is available on IC660BBD110's website page; it also includes a datasheet, a user manual, and a wiring diagram.


Repair your IC660BBD110

PDF Supply can repair your IC660BBD110 in 3-5 business days. And PDF Supply stands by all of its repairs with a 1 year customer satisfaction warranty.



Customer Questions and Answers


  • Question:  What is an IC660BBD110?  Answer:  The IC660BBD110 is a 115 volt AC, 16-Point Input Discrete Block from the GE Fanuc Genius I/O Series.
  • Question:  If I power up my IC660BBD110 and I do not get a red OK light, what does that mean?  Answer:  It means there is something wrong with your IC660BBD110.
  • Question:  What will I need to test this block?  Answer:  You will need a 115 volt AC cord input, a raw probe, the IC660HHM501 Hand Held Monitor, a slot rack, a power supply, a CPU, and the IC693BEM331 Genius bus controller (this should be connected to your serial one, two, and shield).
  • Question:  What baud rate should I use in my HHM?  Answer:  You should use the default baud rate, which is 153.6K standard. If it is not on that, then you can flip through the speeds until you get to this default speed.
  • Question: Can I use the HHM for configuration of IC660BBD110?  Answer:  Yes, you can. Please see our YouTube video that is on IC660BBD110's website page on how to do that.
  • Question:  Are there any other lights that I should see come on when testing this block?  Answer:  Yes, when your CPU is in run mode and communicating, the I/O Enabled LED light should come on to show you that the block is enabled. Also, all the input's LED lights should come on when you probe them with a hot lead.
  • Question:  What indicates a good working block?  Answer:  If there are no flashing lights, if it powers up, if all the inputs work, and if the HHM and the BEM work with Proficy Machine Edition then you have a good working IC660BBD110.
  • Question:  How do I know if my IC660BBD110 needs repairing or replacing?  Answer:  If any of the above mentioned factors are not working, then your product may need repair.

For more information on the IC660BBD110 16 Circuit Input Block of the GE Fanuc Genius I/O Series, please see the Datasheet User-Manual.
