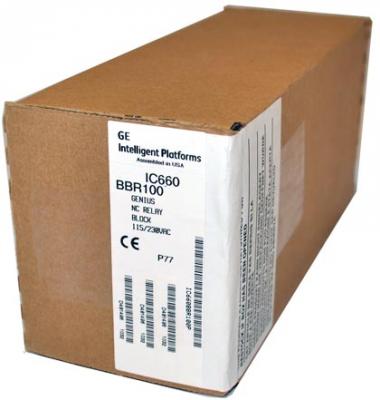

IC660BBR100

Buy NowIC660BBR100
IC660BBR100
IC660BBR100 Wiring

Rated 4.5/5 based on 10 ratings.
  • IC660BBR100
  • IC660BBR100 Wiring

Product Description



The IC660BBR100 is a Normally Closed Relay Output Block.
This block provides 16 output circuits in four independent groups with four relay-type outputs each.



Relay Blocks in the Genius I/O product family arrange outputs in groups of four, and each output can be powered by its own AC or DC source. Because IC660BBR100 is normally closed rather than normally open, it remains in a conductive state when de-energized. Block power for IC660BBR100 can be factory set at 115 VAC or 230 VAC (optional). Voltage selection is made by jumpers on the block's terminal assembly.



Isolation between output circuit groups is 1500 VAC. This block can be used with a wide range of low-power control and indicating devices, including lamps, contactors, and relays. The Relay Output Block behavior can be customized for the environment by way of a handheld monitor. The user can set defaults for output power-up actions, establish whether output reverts to previous state or factory settings during electrical communication interruption, and select a CPU redundancy type. IC660BBR100 can also be designated for bus switching module control.



IC660BBR100 is versatile enough to handle a useful voltage range of 5 to 250 VAC or 5 to 220 VDC. LEDs in the block’s chassis signal unit and I/O conditions. A blinking LED indicates circuit faults. OFF (dark) suggests a defective block; however, the block may simply be lacking appropriate power supply. The ON status confirms expected performance.

Technical Specifications


Rated Voltage: 115 VAC or 230 VAC
# of Points: 16
Input Range: N/A
Load Current: 2 Amp
Operating Voltage: 93-132 VAC / 185-265 VAC
Points per Common:   Four groups of 4



GE Intelligent Platforms / GE Fanuc GE-IP Genius I/O

SKU 2178208  UPC 0564498925844

Part Number: IC660BBR100 / ic660bbr100
Mfr/Brand Name: GE Automation
Mfr Number: IC660BBR100 / ic660bbr100
Type: Relay Output Block, Normally Closed

Troubleshooting and Product Information for IC660BBR100

Download product information, troubleshooting guides and operation manuals to get your PLC operational.

New IC660BBR100
Price: $2,182
1 In Stock
1 Year PDF Supply Warranty

*Need a Specific Revision?

New Surplus IC660BBR100
Price: $1,750
1 In Stock
3 Year PDF Supply Warranty

*What is New Surplus?

Save
 20%
Reman IC660BBR100
Price: $550
2
In Stock

2 Year PDF Supply Warranty

*What is Remanufactured?

Save
 75%
Repair Your IC660BBR100
Price: $348
1 Year PDF Supply Warranty
Call For Assistance
1-800-360-6802

Other IC660BBR100

Available Revisions:

Confirm Your Revision Number

1C660BBR100 , GEFIC660BBR100 , CIMIC660BBR100

Specifications

Block Type: CatalogNumbers:

Output Block, Normally–Closed Relays TerminalAssemblyonly ElectronicsAssemblyonly

Output Block, Normally-Open Relays TerminalAssemblyonly

ElectronicsAssemblyonly

16 circuit relay outputs in four isolated groups of four



IC660BBR100 IC660TBR100 IC660EBR100 IC660BBR101 IC660TBR101

IC660EBR101

Size (height x width x depth):

Weight

LEDs (I/O Block)

LEDs (each circuit)

8.83” (22.44cm) x 3.50” (8.89cm) x 3.94” (10.00cm)

4 lbs. (1.8 kg)

UnitOK,I / OEnabled

Individual relay coilstate

EnvironmentalSpecifications: Operatingtemperature Storagetemperature Humidity

Vibration

0C   to   +60C   (32F   to  +140F)

–40C   to    +100C   (–40F   to   +212F)

5 to 95% (non–condensing)

5–10Hz 0.2” (5.08mm) displacement; 10–200Hz at 1G

Block PowerSupply: Frequency Operatingvoltage

Power requirement

Power supplydropouttime Isolation:

Alloutputs to chassis ground Between output groups

Power terminals to chassis ground Power terminals to outputs

Comms terminals to power terminals Comms terminals to outputs

HeatDissipation

47–63 Hz

(115VAC) 93VAC to 132VAC; (230VAC) 185VAC to 265VAC 87mA at 115 VAC

1 cycle

1500 VAC

1500 VAC

1700 VDC

1500 VAC

1700 VDC

1500 VAC

10.1 watts maximum with 16 outputs on

OutputCharacteristics: Maximum Output current Maximumswitchingpower Maximuminrush current Output OFF leakage current

Maximumswitchingfrequency Output turn–on delay (maximum) Output voltage range

Minimumrecommendedload



2 amps per circuit 60 Watts or 125 VA 2 amps per circuit

0.1mA

20cycles / minute(inductiveloads) 5mS

5V to 250V AC or 5V to 220V DC

10mA

Relay Type

Initial Contact Resistance

Fixed coil moving armature 100 milliohms, maximum

Typical Life: OperatingVoltage:

250VAC

250VAC

125VAC

220VDC

110VDC

30VDC

30VDC

12VDC

MaximumCurrent for Load Type * TypicalLife Resistive  Lamp Solenoid (operations) 0.5A              ––                            ––                            200,000

–– 0.1A 0.1A 100,000

1.0A 0.2A 0.3A 100,000

0.3A –– –– 100,000

0.6A –– –– 100,000

2.0A –– –– 500,000

–– 0.2A 0.3A 100,000

–– 0.3A 0.5A 100,000

Effect of AdditionalCurrent onOperatingLife:

250VAC

125VAC

30VDC

12VDC

Current in Load Type  TypicalLife Resistive  Lamp Solenoid (operations) 0.1A              ––                            ––              1,500,000

0.3A –– –– 1,000,000

1.0A –– –– 2,000,000

2.0A –– –– 1,000,000

* Lamp loads are defined as a X10 inrush with a power factor (PF) of 1.00; when turned OFF, they represent a PF of 1.00. Solenoids are de- fined as a X10 inrush with a PF of 0.65; when turned OFF, they repre-

sent a PF of 0.35.

Troubleshooting IC660BBR100

Troubleshooting information is available on IC660BBR100's website page; it also includes a datasheet, a user manual, and a wiring diagram.


Repair your IC660BBR100

PDF Supply can repair your IC660BBR100 in 3-5 business days. And PDF Supply stands by all of its repairs with a 1 year customer satisfaction warranty.



Customer Questions and Answers


  • Question:  What is an IC660BBR100?  Answer:  The IC660BBR100 is a Normally-Closed Relay Output Block. This block provides 16 output circuits in 4 independent groups of 4 relay-type outputs each.
  • Question:  What is the block power?  Answer:  The block power can be either 115VAC or 230VAC.
  • Question:  With what kind of devices is IC660BBR100 compatible?  Answer:  IC660BBR100 is compatible with numerous low-power control and indicating devices like relays, contactors, and lamps.
  • Question:  How is voltage selection made?  Answer:  It is made by jumpers on the Terminal Assembly.
  • Question:  Can IC660BBR100 be configured with a Hand Held Monitor?  Answer:  Yes, configuration of this block can be done with a HHM.
  • Question:  What are some of the features that comes with IC660BBR100?  Answer:
    • Output power up defaults
    • Output Hold Last State or default
    • CPU Redundancy type
    • Bus Switching module control
  • Question:  What is my next step if my IC660BBR100 is not functioning properly?  Answer:  Your product may need repair

For more information on the IC660BBR100 Relay Output Block of the GE Fanuc Genius I/O Series, please see the Datasheet User-Manual.

The final letter in the part number (ex. IC660BBR100K) indicates the revision. Revision K and later use the newer style electronic housing and therefore need the newer style plastic door and may indicate some compatibility issues with the terminal strip.
