IC694MDL231

Buy NowIC694MDL231

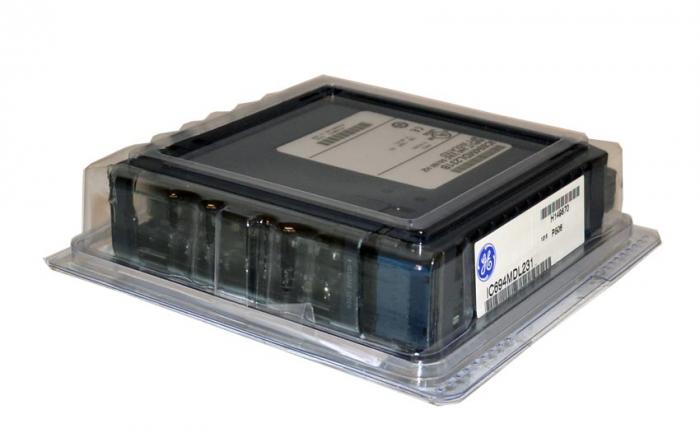

IC694MDL231

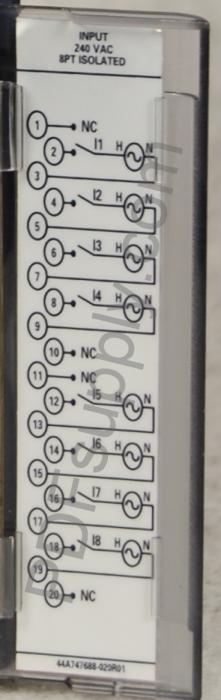

IC694MDL231 Wiring

Rated 4.3/5 based on 4 ratings.
  • IC694MDL231
  • IC694MDL231 Wiring

Product Description


IC694MDL231 is a 240 VAC Isolated Input Module by GE Fanuc for the Rx3i PACSystem controller series. This module is equipped with eight isolated input points, each having its own common power input terminal. These input circuits are reactive (resistor/capacitor) inputs. Current into an input point will result in a logic 1 in the input status table (%I).

Input characteristics are matched with a variety of input devices, including pushbuttons, limit switches, and electronic proximity switches. Since these inputs are isolated, each input can be powered by a separate AC power source. The user must supply power to operate the field devices. This module requires an AC power source and is not compatible with a DC power source.

LEDS provide important information. Eight green LEDs indicate the ON/OFF status of points 1 through 8. Red bands situated on the label warn the user that IC694MDL231 is high-voltage. On-state voltage is 148-264 VAC while off-state voltage is 0-40 VAC. On-state current is 6mA minimum with off-state current at 2.2mA maximum. On/off response times are 30ms and 45ms maximum respectively. This module can be installed in any I/O slot in an RX3i system.

Technical Specifications


Rated Voltage:  240 volts AC
# of Inputs: 8 (isolated)
Freq: 50/60 Hz
Input Current: 15 mA
Input Voltage Range:  0 to 264 volts AC
Power Consumption:   60 mA from 5 V bus





GE Intelligent Platforms / GE Fanuc GE RX3i PacSystem

SKU 2178024  UPC 0208102719725

Part Number: IC694MDL231 / ic694mdl231
Mfr/Brand Name: GE Automation
Mfr Number: IC694MDL231 / ic694mdl231
Type: 240 volts AC, Input Module, 8 Isolated Points

Troubleshooting and Product Information for IC694MDL231

Download product information, troubleshooting guides and operation manuals to get your PLC operational.

New IC694MDL231
Price: $238
7 In Stock
1 Year Warranty

*Need a Specific Revision?

New Surplus IC694MDL231
Price: $194
2 In Stock
3 Year PDF Supply Warranty

*What is New Surplus?

Save
 19%
Reman IC694MDL231
Price: $116
3
In Stock

2 Year PDF Supply Warranty

*What is Remanufactured?

Save
 52%
Repair Your IC694MDL231
Price: $100
1 Year PDF Supply Warranty
Call For Assistance
1-800-360-6802

Other IC694MDL231

Available Revisions:

Confirm Your Revision Number

1C694MDL231 , GEFIC694MDL231 , CIMIC694MDL231

Specifications:

Rated Voltage                                240 Vac, 50/60 Hz
Input Voltage Range                      0 to 264 Vac, 50/60 Hz
Inputs per Module                         8 (each input point has a separate common)


Isolation:
Field to Backplane                          250Vac continuous

(optical) and to frame ground     1500 Vac for one minute


Point to Point                                  250 Vac continuous;
                                                        1500 Vac for one minute


Input Current                             15 mA (typical) at rated voltage
Input Characteristics:
On–state Voltage                       148 to 264 Vac
Off–state Voltage                       0 to 40 Vac
On–state Current                       6 mA minimum
Off–state Current                       2.2 mA maximum
On response Time                     30 ms maximum
Off response Time                     45 ms maximum
Power Consumption                  60mA (all inputs on) from 5 Vdc bus on
backplane

Troubleshooting IC694MDL231

Troubleshooting information is available on IC694MDL231's website page; it also includes a datasheet user-manual and a wiring diagram.


Repair your IC694MDL231

PDF Supply can repair your IC694MDL231 in 3-5 business days. And PDF Supply stands by all of its repairs with a 1 year customer satisfaction warranty.

Customer Questions and Answers


  • Question:  What is an IC694MDL231?  Answer:  The IC694MDL231 is an 8-Point, 240 Volt AC, Isolated Input module from the GE Fanuc RX3i Series.
  • Question:  What does IC694MDL231 provide?   Answer:  IC694MDL231 provides 8 isolated input points, each with a common power input terminal.
  • Question:  What kind of input circuits does IC694MDL231 have?   Answer:  They are reactive (resistor/capacitor) inputs.
  • Question:  What is the result when current gets put into an input point?   Answer:  This will result in a logic 1 in the input status table (%I).
  • Question:  With what are the input characteristics compatible?   Answer:  They are compatible with a wide range of input devices, such as pushbuttons, limit switches, and electronic proximity switches.
  • Question:  From where must power to operate the field devices be supplied?   Answer:  Power to operate the field devices must be supplied by the user.
  • Question:  What kind of power source does IC694MDL231 require?   Answer:  This module requires an AC power source; it can NOT be used with a DC power source.
  • Question:  The 8 green LEDs indicate what?   Answer:  They indicate the ON/OFF status of points 1 through 8.
  • Question:  The red bands on the label show what?   Answer:  They show that IC694MDL231 is a high-voltage module.
  • Question:  Into what slot should IC694MDL231 be installed?   Answer:  IC694MDL231 can be installed in any I/O slot of an RX3i system.
  • Question:  What should I do if my IC694MDL231 is not working properly?   Answer:  Your IC694MDL231 may need repair

For more information on the IC694MDL231 8-Point, 240 Volt AC, Isolated Input Module of the GE Fanuc RX3i Series, please see the Datasheet User-Manual.
