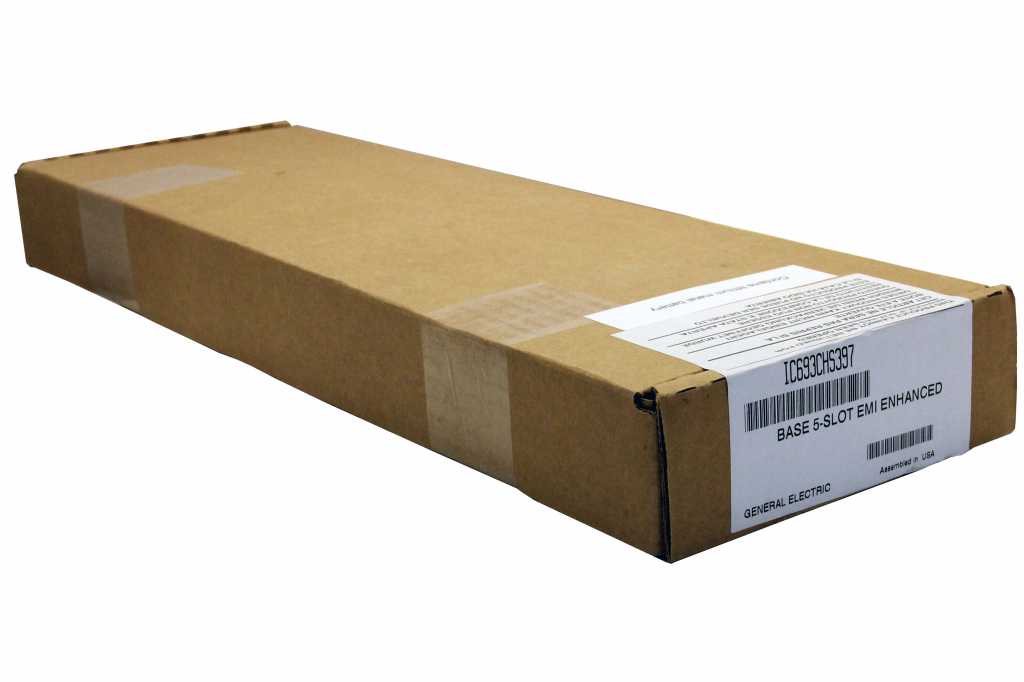

IC693CHS397

Buy NowIC693CHS397
IC693CHS397
IC693CHS397 Wiring

Rated 4.5/5 based on 15 ratings.
  • IC693CHS397
  • IC693CHS397 Wiring

Product Description


The GE Fanuc IC693CHS397 is a 5-slot modular CPU baseplate. To operate the baseplate, users must plug a power supply module into the left slot. This slot is unique in size and type, in that in only supports a power supply module. This slot is not numbered.  In slot 1, a CPU or special option module must be installed. Similar to slot 2, this slot is unique in size and type, in that it can only support a CPU module or else a special option module, for example a FIP Remote I/O Scanner (IC693BEM330). Slot 1 is labeled CPU/1.

For all slots numbered 2 and above, users can install option modules or I/O modules. These slots are of a unique size and type, so they will support either of these.  The modular CPU baseplate can support expansion and remote baseplates. Therefore, on the right end of the baseplate, there is a female expansion connector. This is a 25-pin D-type, which allows users to connect to either an Expansion or Remote baseplate.

If any additional features are desired, the user can accommodate them. This is because the CPU is modular. This enables the user to replace or change it to a different type.  For any one system, a maximum of one CPU baseplate may be used. Any additional ones must be an expansion or remote baseplate. By default, a modular CPU baseplate such as the IC693CHS397 is always assigned Rack Number 0.



Technical Specifications


Module Type:  CPU I/O Base
Baseplate Option: Main (with CPU slot)
Distance:  N/A
Number of Slots: 5
Dimensions: 10.43 x 5.12 x 5.59 in. (W x H x D)
Internal Power Used: 270 mA @ 5 VDC






GE Intelligent Platforms / GE Fanuc GE Series 90-30

SKU 2173417  UPC 0643770290914

Part Number: IC693CHS397 / ic693chs397
Mfr/Brand Name: GE Automation
Mfr Number: IC693CHS397 / ic693chs397
Type: 5-Slot CPU Baseplate.

Technical Specifications

  • 5 Slots
  • Rack Type : Modular CPU
  • Rack Size (Slots) : 5
    Troubleshooting and Product Information for IC693CHS397

    Download product information, troubleshooting guides and operation manuals to get your PLC operational.

    New IC693CHS397
    Price: $483
    50 In Stock
    1 Year Warranty

    *Need a Specific Revision?

    New Surplus IC693CHS397
    Price: $273
    1 In Stock
    3 Year PDF Supply Warranty

    *What is New Surplus?

    Save
     44%
    Reman IC693CHS397
    Price: $110
    17
    In Stock

    2 Year PDF Supply Warranty

    *What is Remanufactured?

    Save
     78%
    Repair Your IC693CHS397
    Price: $100
    1 Year PDF Supply Warranty
    Call For Assistance
    1-800-360-6802

    Other IC693CHS397

    Available Revisions:

    Confirm Your Revision Number

    1C693CHS397 , GEFIC693CHS397 , CIMIC693CHS397

    Modular CPU Baseplates

              A Power Supply module must be plugged into the left slot (which is not numbered) of these baseplates. The left slot is a unique size and type that only supports a Power Supply module.

              A CPU module (or a special Option module) must be installed in Slot 1 of these baseplates. Slot 1 is a unique size and type that only supports a CPU module or a special Option module like the FIP Remote I/O Scanner (IC693BEM330). Slot 1  is labeled CPU/1.

              Slots numbered 2 and above are of a unique size and type that only supports I/O or Option modules.

              Expansion and Remote baseplates are supported, so a 25-pin D-type female expansion connector is located at the right end of the baseplate for connecting to an Expansion or Remote  baseplate.

              Since the CPU is modular, it can be replaced or changed to a different type if additional features are desired.

              Only one CPU baseplate is allowed per system. If more than one baseplate is used  in a system, the additional ones must be either Expansion or Remote types.

              A modular CPU baseplate is always assigned, by default, Rack Number 0.

    Troubleshooting IC693CHS397

    Troubleshooting information is available on IC693CHS397's website page; it also includes a datasheet user-manual and a wiring diagram.



    Repair your IC693CHS397

    PDF Supply can repair your IC693CHS397 in 3-5 business days. And PDF Supply stands by all of its repairs with a 1 year customer satisfaction warranty.



    Customer Questions and Answers


    • Question:  What is an IC693CHS397?  Answer:  The IC693CHS397 is a 5-Slot Modular CPU Baseplate.
    • Question:  Where should a Power Supply module be plugged into in this baseplate?  Answer:  A Power Supply module MUST be plugged into the left slot (which is not numbered) of this baseplate. The left slot is a unique size and type that only supports a Power Supply module.
    • Question:  What should be installed in Slot 1 of IC693CHS397?  Answer:  A CPU module (or a special Option module) MUST be installed in Slot 1 of this baseplate. Slot 1 is a unique size and type that only supports a CPU module or a special Option module (like the FIP Remote I/O Scanner). Slot 1 is labeled CPU/1.
    • Question:  What is special about slots numbered 2 and above in IC693CHS397?  Answer:  Slots numbered 2 and above are of a unique size and type that only supports I/O or Option modules.
    • Question:  Can you connect an Expansion or Remote baseplate to IC693CHS397?  Answer:  Yes, you can. A 25-pin D-type female expansion connector is located at the right end of the baseplate so you can connect Expansion or Remote baseplates.
    • Question:  Can this baseplate be replaced or changed to a different type if additional features are desired?  Answer:  Yes it can because the CPU is modular.
    • Question:  How many CPU baseplates are allowed per one system?  Answer:  Only 1 CPU baseplate is allowed per system. If more than 1 baseplate is used in a system, the additional ones must be either Expansion or Remote types.
    • Question:  Where is the modular CPU baseplate always assigned?  Answer:  It is assigned, by default, Rack Number 0.
    • Question:  What should I do if my IC693CHS397 is broken or non-functional?  Answer:  We can repair your IC693CHS397 here at PDF Supply.

    For more information on the IC693CHS397 5-Slot Modular CPU Baseplate of the GE 90-30 Series, please see the Datasheet Manual.
