IC693CMM301 is a Genius Communications Module (GCM) which is an intelligent module for the Series 90-30 PLC which offers worldwide connections on a genius communications bus between series 90-30 PLCs and other GE Fanuc PLCs. With the use of genius bus controllers, Series 90-70, Series Six, and Series Five PLCs can easily communicate. 0-32 devices can be linked on a Genius Bus. The Genius bus links to the terminal board on the front of GCM module. The Genius communication module can be put on a Series 90-30 CPU baseplate, an expansion baseplate, or a remote baseplate. In order to ensure high performance of the IC693CMM301, the module should be set up on the CPU baseplate. The genius communication module can be utilized for many applications which may include; monitoring of data by an industrial computer and group to group communications among devices on the bus.

The IC693CMM301 Genius Communications bus uses a noise immune network so as to offer fast data transmission of real-time control data. Series 90-30 PLCs are able to connect with one another via a one Genius I/O serial bus with the aid of standard twisted pair, shielded cable, daisy-chained between devices, and terminated at both ends. It is important to use the proper cable to ensure good performance of the system. Genius communication modules have LED indicators located at the front. On usual operations, it is switched on to show the operating status of the module. OK indicates the status of the GBC module where the LED switches on when the power checkup is done. COM displays the status of the Genius communications bus. This indicator remains constantly on, indicating the bus is working well. In case of a failed bus, the indicator blinks and eventually goes off showing there are bus errors and no communication from the PLC. Up to eight Enhanced Genius Communications Modules can be used in a Series 90-30 PLC system. The amount of I/O circuits served by a single Genius bus depends on the varied forms of I/O devices being utilized and the amount of memory storage in the CPU.

GE Intelligent Platforms / GE Fanuc GE Series 90-30

SKU 2173464  UPC 0617865843606

Part Number: IC693CMM301 / ic693cmm301
Mfr/Brand Name: GE Automation
Mfr Number: IC693CMM301 / ic693cmm301
Type: Genius Communications Module

Technical Specifications

  • Genius Communications Module
  • GCM - 256 bits
    Troubleshooting and Product Information for IC693CMM301

    Download product information, troubleshooting guides and operation manuals to get your PLC operational.

    New Surplus IC693CMM301
    Price: $995
    5 In Stock
    3 Year PDF Supply Warranty

    *What is New Surplus?

    Save
     43%
    Reman IC693CMM301
    Price: $350
    3
    In Stock

    2 Year PDF Supply Warranty

    *What is Remanufactured?

    Save
     80%
    Repair Your IC693CMM301
    Price: $250
    1 Year PDF Supply Warranty
    Call For Assistance
    1-800-360-6802

    Other IC693CMM301

    Available Revisions:

    Confirm Your Revision Number

    1C693CMM301 , GEFIC693CMM301 , CIMIC693CMM301

    Ordering Information    IC693CMM301,

    Module Type    Series 90-30 PLC module, providing Global Data

    communications with up to 7 other PLCs.

    LEDs     OK, COM

    Global Data Length:

    per Communications Module   Up to 256 bits, configurable in 32–bit increments.

    per Series 90–30 PLC    Up to maximum available %G memory

    Environmental:

    Operating Temperature   0_C to +60_C

    (+32 _F to +140_F)

    Storage Temperature    –25 _C to +70_C

    (–13 _F to +158_F)

    Humidity     5% to 95% (non–condensing)

    Vibration and Shock   0.2 inch displacement 5Hz to 10Hz

    1 G 10Hz to 200Hz

    5 G 10Ms duration

    Troubleshooting IC693CMM301

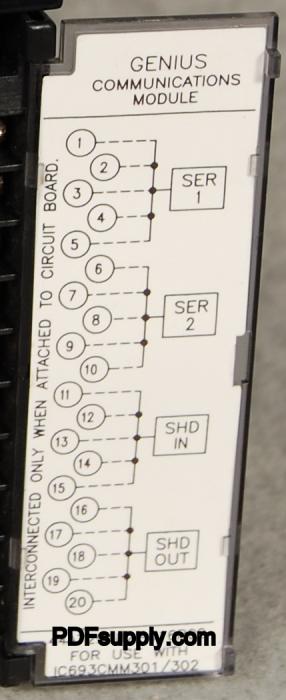

    Troubleshooting information is available on IC693CMM301’s website page; it also includes a datasheet user-manual and a wiring diagram.
