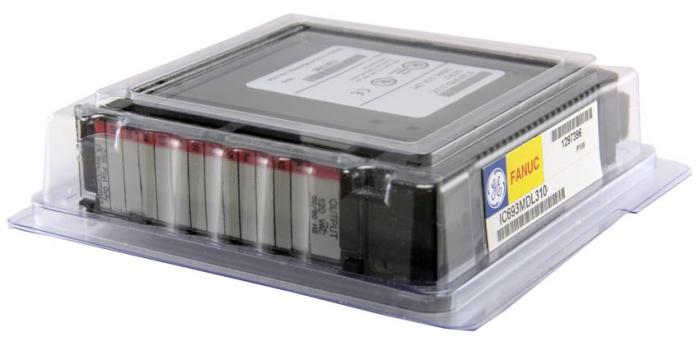

IC693MDL310

Buy NowIC693MDL310
IC693MDL310

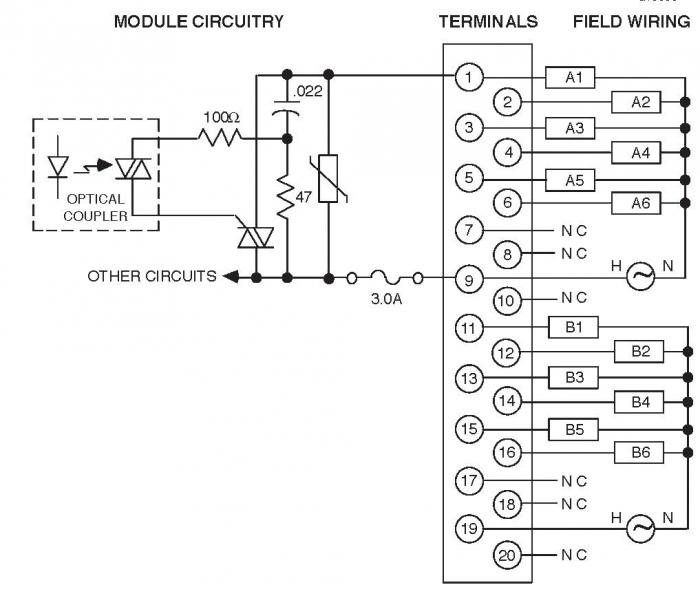

IC693MDL310 Wiring

  • IC693MDL310
  • IC693MDL310 Wiring

Product Description


IC693MDL310 is a 120-volt, 0.5 Amp AC output module that offers 12 output points in two separate classes. The two classes have six points each. Each class has an isolated common which is not knotted together within the module. This is important since it permits each class to be used in different stages of AC supply. A 3 Amps fuse is used to safeguard every class. An RC snubber is offered to every output to safeguard against transient electrical noise coming from the power line. IC693MDL310 delivers a high degree of inrush current that enhances the outputs ability to control many inductive and incandescent loads. The AC power to run operations linked to output should be supplied from the user.

There are LED indicators located at the top of the module which indicates the on/off condition of every point. The module makes use of the first 6 LEDs listed as B1 through 6 in the bottom row for output status. The IC693MDL310 is also regarded as a 16-point output for output 1 to 6 and 9 to 14. The module consists of an insert between the inside and outside surface of the hinged door. The module has an output voltage range of 85 to 132 voltages AC. Its output current is 0.5 Amps per point. The inrush least load current is 5 Amps highest for a single cycle. The module also has an output leakage current of 3 mA maximum at 120 volts AC. The power consumed by the module is 210 mA from 5 volts bus on the backplane. Furthermore, it has an isolation of 500 volts between every class.

Technical Specifications


Rated Voltage: 120 volts AC
# of Inputs: 12
Freq: 50/60 Hz
Output Current: 0.5 A per point
Output Voltage Range:  85 - 132 volts AC
DC Power: No



GE Intelligent Platforms / GE Fanuc GE Series 90-30

SKU 2178158  UPC 027391568995

Part Number: IC693MDL310 / ic693mdl310
Mfr/Brand Name: GE Automation
Mfr Number: IC693MDL310 / ic693mdl310
Type: 120 volts AC Output Module, 12 Output Points

Technical Specifications

      Troubleshooting and Product Information for IC693MDL310

      Download product information, troubleshooting guides and operation manuals to get your PLC operational.

      Reman IC693MDL310
      Price: $198
      4
      In Stock

      2 Year PDF Supply Warranty

      *What is Remanufactured?

      Save
       60%
      Repair Your IC693MDL310
      Price: $100
      1 Year PDF Supply Warranty
      Call For Assistance
      1-800-360-6802

      Other IC693MDL310

      Available Revisions:

      Confirm Your Revision Number

      1C693MDL310 , GEFIC693MDL310 , CIMIC693MDL310



      Rated Voltage

      120 volts AC

      Output Voltage Range

      85 to 132 volts AC, 50/60 Hz

      Outputs per Module

      12 (two groups of six outputs each)

      Isolation

      1500 volts between field side and logic side

      Output Current t

      500 volts between each group

      0.5 amp maximum per point

      1 amp maximum per group at 60 °C  (140°F)



      2 amps maximum per group at 50 °C  (122°F)

      Output Characteristics



      Inrush Current

      5 amps maximum for one cycle

      Minimum Load Current

      50 mA

      Output Voltage Drop

      1.5 volts maximum

      Output Leakage Current

      3 mA maximum at 120 volts AC

      On Response Time

      1 ms maximum

      Off Response Time

      1/2 cycle maximum

      Power Consumption

      210 mA (all outputs on) from 5 volt bus on backplane

      Troubleshooting IC693MDL310

      Troubleshooting information is available on IC693MDL310’s website page; it also includes a datasheet user-manual and a wiring diagram.



      Repair your IC693MDL310

      PDF Supply can repair your IC693MDL310 in 3-5 business days. And PDF Supply stands by all of its repairs with a 1 year customer satisfaction warranty.

      Customer Questions and Answers




      • Question:  What is an IC693MDL310?  Answer:  The IC693MDL310 is a 120 volt, 0.5 Amp AC Output module in the GE Fanuc 90-30 Series. This module provides 12 output points in 2 isolated groups with 6 points in each group. Each of these groups has an individual common related to it. The 2 commons are not joined together in this module. Which means that each group can function on different phases of the AC supply or it can function from the same supply.
      • Question:  What is the rated voltage of IC6963MDL310?  Answer: 120 volts AC
      • Question:  What is the output voltage range of IC693MDL310?  Answer:  85 to 132 volts AC, 50/60 Hz
      • Question:  What kind of power source does this module require?  Answer:  The IC693MDL310 requires an AC power source.
      • Question:  With what is each group protected?  Answer:  A 3 amp fuse. A RC snubber is also there for each output to protect from transient electrical noise.
      • Question:  Into what can the IC693MDL310 be installed?  Answer:  The IC693MDL310 can be installed in any I/O slot of a 5 or 10 baseplate in a Series 90-30 PLC system.
      • Question:  What does the red LED (labeled F) mean if it turns ON?  Answer:  It means that one of the fuses has blown.
      • Question:  What should I do if my IC693MDL310 is not working properly?  Answer:  If your IC693MDL310 is not correctly working, then your product may need repair.

      For more information on the IC693MDL310 AC Output Module of the GE 90-30 Series, please see the Datasheet Manual.
