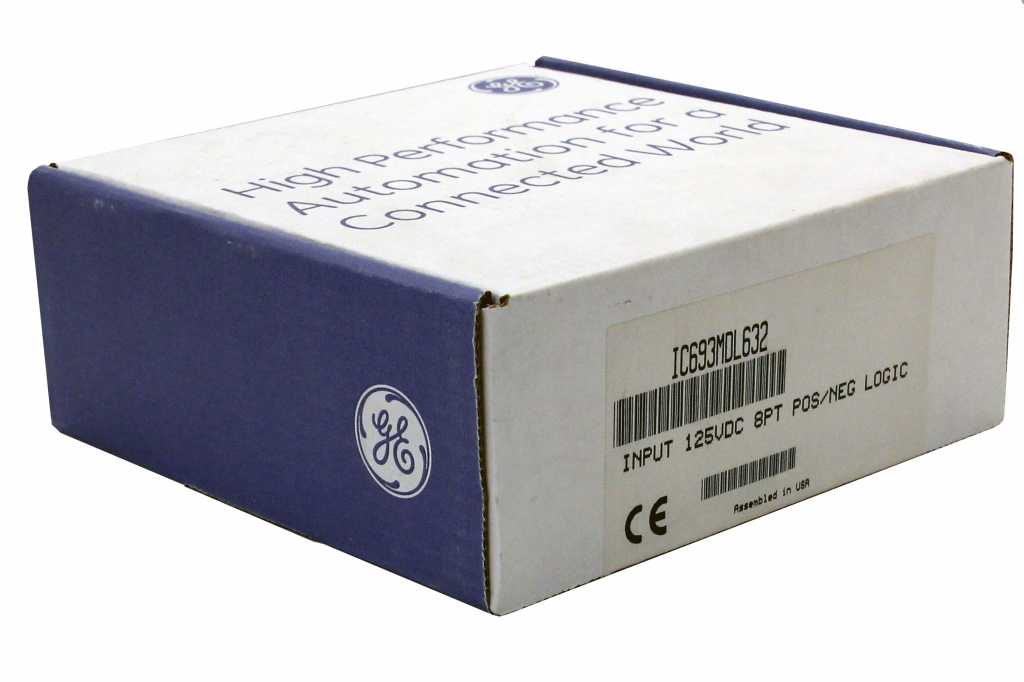

IC693MDL632

Buy NowIC693MDL632
IC693MDL632

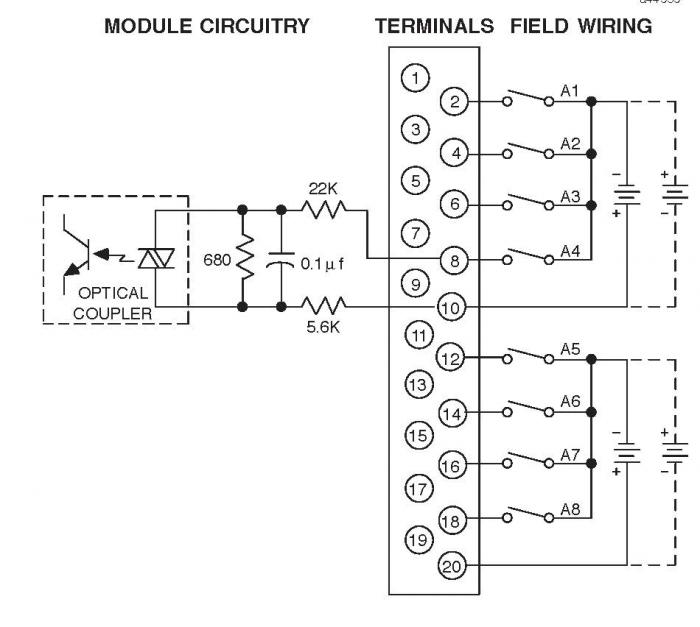

IC693MDL632 Wiring

  • IC693MDL632
  • IC693MDL632 Wiring

Product Description


 The GE Fanuc IC693MDL632 is a 125 volt DC Positive/Negative Logic Input module. This module has 8 separate input points, divided evenly between two isolated groups. Each of these two groups has their own individual common. The commons are not connected or tied together inside the body of the module.

Operators can use this module with a Series 90-30 PLC. This is done by installing it in an I/O slot of a 5-slot or 10-slot base plate.

In order to operate field devices, the operator must supply power to them. First, the input device must be connected. This is done between the module input and the power bus. There is a wide range of input device that are compatible with input characteristics. This includes but is not limited to electronic proximity switches, pushbuttons and limit switches.

The IC693MDL632 module can have positive or negative logic characteristics. This is by design. It can sink current to the user common or negative power bus from the input device – positive logic. Conversely, the module can source current from the input device and send it to the user common or positive power bus – negative logic.

On the top of the module, users will find the LED block. There are two horizontal rows of indicators. As this module has just 8 points, it only uses the top row – points 1 to 8. These show the on/off status of each point.

There is a hinged door on this module and an insert is between the inner and outer surfaces of the door. When the door is closed, the surface of the insert that is facing the inside of the module has information on circuit wiring. Also, circuit identification information can be recorded on the outer surface.

On the outer-left edge of the insert, users can see it is red. This is color-coded to let the user know it is a high-voltage module.

Technical Specifications


Rated Voltage: 125 volts DC
# of Inputs: 8
Freq: n/a
Input Current: 4.5 mA
Isolation: 1500 volts between field side and logic side
DC Power: Yes



GE Intelligent Platforms / GE Fanuc GE Series 90-30

SKU 2173164  UPC 0315342963402

Part Number: IC693MDL632 / ic693mdl632
Mfr/Brand Name: GE Automation
Mfr Number: IC693MDL632 / ic693mdl632
Type: 125 Volts DC Positive/Negative Logic Input Module

Technical Specifications

      Troubleshooting and Product Information for IC693MDL632

      Download product information, troubleshooting guides and operation manuals to get your PLC operational.

      New IC693MDL632
      Price: $818
      4 In Stock
      1 Year Warranty

      *Need a Specific Revision?

      New Surplus IC693MDL632
      Price: $550
      1 In Stock
      3 Year PDF Supply Warranty

      *What is New Surplus?

      Save
       33%
      Reman IC693MDL632
      Price: $116
      6
      In Stock

      2 Year PDF Supply Warranty

      *What is Remanufactured?

      Save
       86%
      Repair Your IC693MDL632
      Price: $117
      1 Year PDF Supply Warranty
      Call For Assistance
      1-800-360-6802

      Other IC693MDL632

      Available Revisions:

      Confirm Your Revision Number

      1C693MDL632 , GEFIC693MDL632 , CIMIC693MDL632



      Rated Voltage

      125 volts DC (Positive or Negative Logic)

      Input Voltage Range

      0 to +150 volts DC

      Inputs per Module t

      8 (two groups of four inputs)

      Isolation

      1500 volts between field side and logic side



      500 volts between groups

      Input Current

      4.5 mA typical

      Input Characteristics



      On-state Voltage

      90 to 150 volts DC

      Off-state Voltage

      0 to 30 volts DC

      On-state Current

      3.1 mA

      Off-state Current

      1.1 mA maximum

      On response Time

      7 ms typical

      Off response Time

      7 ms typical

      Internal Power Consumption

      40 mA from the 5 volt bus on the backplane



      36 mA (typical) from user input supply (all inputs



      ON)



      Troubleshooting IC693MDL632

      Troubleshooting information is available on IC693MDL632’s website page; it also includes a datasheet user-manual and a wiring diagram.



      Repair your IC693MDL632

      PDF Supply can repair your IC693MDL632 in 3-5 business days. And PDF Supply stands by all of its repairs with a 1 year customer satisfaction warranty.



      Customer Questions and Answers


      • Question:  What is an IC693MDL632?  Answer:  The IC693MDL632 is a 125 volt DC Positive/Negative Logic Input module for the GE Fanuc Series 90-30. It provides 8 output points in 2 isolated groups with 4 points in each group. The 2 commons are not joined together in this module.
      • Question:  What is the rated voltage of IC6963MDL632?  Answer:  125 volt DC
      • Question:  What is the input voltage range of IC693MDL632?  Answer:  0  to +150 volts DC
      • Question:  What kind of power source does this module require?  Answer:  The IC693MDL632 requires an DC power source.
      • Question:  Into what can the IC693MDL632 be installed?  Answer:  The IC693MDL632 can be installed in any I/O slot of a 5 or 10 baseplate in a Series 90-30 PLC system.
      • Question:  What should I do if my IC693MDL632 is not working properly?  Answer:  If your IC693MDL632 is not correctly working, then your product may need repair.

      For more information on the IC693MDL632 DC Input Module of the GE 90-30 Series, please see the Datasheet Manual.
