Technical Specifications for IC693MDL730

ManufacturerGE Fanuc
SeriesSeries 90-30
Part NumberIC693MDL730
Product TypePLC Module
Voltage TypeDC
Output Voltage Range12-24V DC
I/O Points8
Load Current per Point2 Amps
On Response Time2 ms
Off Response Time2 ms

Product Description

The GE Fanuc IC693MDL730 is a 12/24 Volt DC Positive Logic 2 Amp Output module. This device is designed to work with the Series 90-30 Programmable Logic Controller. It provides 8 output points in a single group, which share a common power input terminal. The module has positive logic characteristics. This is evident in the fact that it provides current to the loads, sourcing it from the positive power bus or else the user common. Users who want to operate this module can do so with a range of output devices, including indicators, solenoids and motor starters. The output device must be connected between the module output and the negative power bus. The user needs to set up an external power supply to provide the power needed to operate these field devices.

On the top of the module, there is an LED block with two horizontal rows of green LEDs. One row is labelled A1 while the other is labelled B1. The first row is for points 1 through 8 and the second row is for points 9 through 16. These LEDs indicate the ON/OFF status of each point on the module. There is also a red LED, which is labelled “F”. This is located between the two rows of green LEDs. Whenever any fuse is blown, this red LED turns on. This module has two 5-amp fuses. The first fuse protects outputs A1 to A4 while the second fuse protects outputs A5 to A8. Both of these fuses are connected to the same common by electrical means.

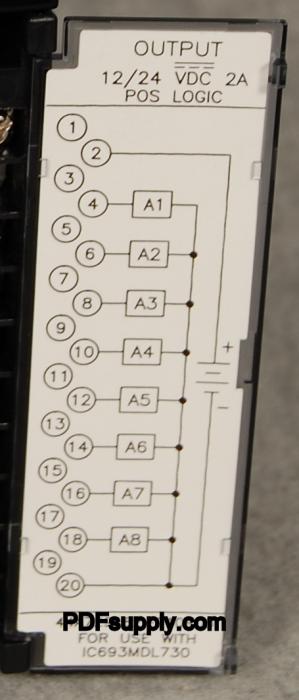

The IC693MDL730 has an insert to go between the surfaces of the hinged door. This door should be closed during operation. The surface facing the inside of the module has info on circuit wiring. On the outer surface, circuit identification information may be recorded. This unit is a low-voltage module, as denoted by the blue color-coding on the outer left edge of the insert.  To operate it with the Series 90-30 PLC system, users can install the module in any I/O slot of either a 5 or 10-slot baseplate.

Technical Specifications

Rated Voltage: 12/24 volts DC
# of Outputs: 8
Freq: n/a
Output Load: 2.0 Amps
Output Voltage Range:   12 to 24 volts DC
DC Power: Yes



The IC693MDL730 module is a Series 90-30 PLC module that has a 12 to 24 Volts DC voltage rating with positive logic and a current rating of 2 Amps. The unit comes with a DC power source and it has 8 I/O points. It has a current load rating of 2 Amps per point with a response time of 2 milliseconds for the on-state and the off-state. The types of output that this PLC module has are transistor outputs and they come with a positive polarity. It has a terminal block connector type that requires 20 screws that included with the module. The GE Fanuc IC693MDL730 PLC module is a flexible module and when the correct components are used and the module programming is done properly, the PLC module supports unlimited applications. However, only the qualified technicians should handle the installation, commissioning, and programming of this PLC module to avoid errors.

The GE Fanuc Series 90-30 IC693MDL730 PLC module and the other PLC modules by GE Fanuc have baseplates which are the foundation PLC system, since most of the components are intended to be mounted on them. Each system features a minimum of one baseplate that usually contains the CPU. Additionally, the baseplate comes with a power supply which mounts in the leftmost slot of the baseplate. The IC693MDL730 PLC module has support for a wide range of power supplies, and it is compatible with several GE option modules that extend the capability of the PLC beyond the basic features and that ensure that functions such as networking and communication are provided for the applications.

Technical Information



Rated Voltage

12/24 volts DC

Output Voltage Range

12 to 24 volts DC (+20%, –15%)

Outputs per Module

8 (one group of eight outputs)


1500 volts between field side and logic side

Output Current t

2 amps maximum per point

2 amps maximum per fuse at 60 °C  (140°F)


4 amps maximum per fuse at 50 °C  (122°F)

Output Characteristics


Inrush Current

9.4 amps for 10 ms

Output Voltage Drop

1.2 volts maximum

Off-state Leakage

1 mA maximum

On Response Time

2 ms maximum

Off Response Time

2 ms maximum

Power Consumption

55 mA (all outputs on) from 5 volt bus on backplane


Troubleshooting IC693MDL730

Troubleshooting information is available on IC693MDL730’s website page; it also includes a datasheet user-manual and a wiring diagram.


Repair your IC693MDL730

PDF Supply can repair your IC693MDL730 in 3-5 business days. And PDF Supply stands by all of its repairs with a 1 year customer satisfaction warranty.

Customer Questions and Answers

  • Question:  What is an IC693MDL730?  Answer:  The IC693MDL730 is a 12/24 volt DC Positive Logic 2 Amp Output module for the GE Fanuc Series 90-30. This module provides 8 output points in 1 group with a common power input terminal for each group.
  • Question:  What is this module designed to have?  Answer:  The IC693MDL730 is designed to have positive logic characteristics so it can source current to the loads from the user common or positive power bus.
  • Question:  What is the rated voltage of IC6963MDL730?  Answer:  12/24 volts DC
  • Question:  What is the output voltage range of IC693MDL730?  Answer:  12 to 24 volts DC
  • Question:  What kind of power source does this module require?  Answer:  Power to operate IC693MDL730 must come from an external power supply supplied by the user.
  • Question:  With what are the output characteristics compatible?  Answer:  They are compatible with motor starters, solenoids, and indicators.
  • Question:  Into what can the IC693MDL730 be installed?  Answer:  The IC693MDL730 can be installed in any I/O slot of a 5 or 10 baseplate in a Series 90-30 PLC system.
  • Question:  What should I do if my IC693MDL730 is not working properly?  Answer:  If your IC693MDL730 is not correctly working, then your product may need repair.

For more information on the IC693MDL730 DC Positive Logic Output Module of the GE 90-30 Series, please see the Datasheet Manual.
