Technical Specifications for IC693MDL740

ManufacturerGE Fanuc
SeriesSeries 90-30
Part NumberIC693MDL740
Product TypeOutput Power
Number of Outputs16
Peak Current Draw110 milliamps
Operating Temperature32 to 140 degrees Fahrenheit
Storage Temperature-40 to 185 degrees Fahrenheit
Relative Humidity5 to 95% (Non-Condensing)
Voltage TypeDC

Product Description

The GE Fanuc 90-30 Series IC693MDL740 is a 12/24 positive logic DC output module. This model possesses positive logic so that the module sources current from the positive power bus terminal or the common user to the required loads. The output electronic device is placed in between the output module and the power bus. The rated voltage required for the IC693MDL750 module is 12/24 volts DC, and the output current is a maximum of 0.5 amps per point with a maximum of 2 amps per common.

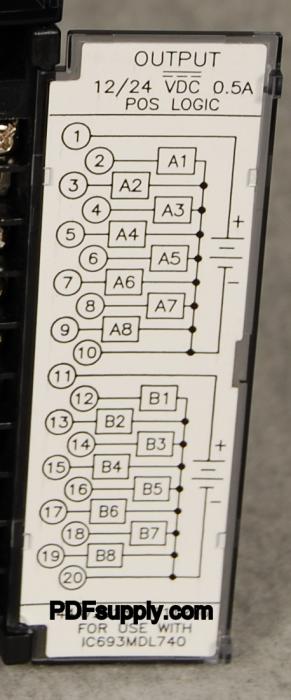

The IC693MDL740 is designed with 16 common points separated into two equal groups. Each group has eight output points and a common output pin. The module’s architecture has a hinged door in which an insert may be placed in between the outside and inside surfaces. When this door is closed, the inside surface of the hinged door contains the wiring information of the circuit whereas outside surface has the identification information about the circuit. The blue color on the left side of insert indicates that IC63MDL740 module is a low voltage module.

The IC693MDL740 has an LED indicator which communicates the status of the circuit. The LED indicator contains two horizontal rows with green LED lights, of which the top row is labeled as A1 and bottom row as B1.

The field device used with this module is operated by the external power supply. This may be installed into any of the input or output slots of a 90-30 Programmable logic control system.


Technical Specifications

Rated Voltage: 12/24 volts DC
# of Outputs: 16
Freq: n/a
Output Current: 0.5 A per point
Output Voltage Range:   12 to 24 volts DC (+20%, -15%)
DC Power: Yes


The IC693MDL740 module from the GE Fanuc Series 90-30 product line is a digital output module that runs on DC power. This output module also uses positive logic power. It has 16 output channels for connecting to up to 16 external devices at a time in a complete Series 90-30 controller setup. The 16 outputs are divided into 2 groups of 8 outputs each, and each group also features a common output pin. There are LED status indicators for each of the output points. The IC693MDL740 digital output module has a nominal input voltage rating of 5 Volts DC and an operating voltage range that runs from 12 to 24 Volts DC. The peak current draw of the IC693MDL740 output module is 110 milliamps.


The GE Fanuc Series 90-30 IC693MDL740 16-point digital output module can operate without derating within an ambient temperature range of 0 to 60 degrees Celsius or 32 to 140 degrees Fahrenheit. It can be stored or transported within a wider ambient temperature range of -40 to 85 degrees Celsius or -40 to 185 degrees Fahrenheit. Additionally, the IC693MDL740 digital output module can tolerate 5 to 95% relative humidity without condensation in operation, in storage, and during transportation. The IC693MDL740 digital output module is rated as a low-voltage output module. It draws its power from an external power supply in the Series 90-30 PLC system and it can be installed in any available slot in one of the system’s racks. The output current ratings of the IC693MDL740 output module are 0.5 Amps per output point and 2 Amps per common.

Technical Information


Rated Voltage

12/24 volts DC

Output Voltage Range

12 to 24 volts DC (+20%, –15%)

Outputs per Module

16 (two groups of eight outputs each)


1500 volts between field side and logic side


500 volts between groups

Output Current

0.5 amps maximum per point


2 amps maximum per common

Output Characteristics


Inrush Current

4.78 amps for 10 ms

Output Voltage Drop

1 volt maximum

Off-state Leakage

1 mA maximum

On Response Time

2 ms maximum

Off Response Time

2 ms maximum

Power Consumption

110 mA (all outputs on) from 5 volt bus on backplane


Troubleshooting IC693MDL740

Troubleshooting information is available on IC693MDL740’s website page; it also includes a datasheet user-manual and a wiring diagram.


Repair your IC693MDL740

PDF Supply can repair your IC693MDL740 in 3-5 business days. And PDF Supply stands by all of its repairs with a 1 year customer satisfaction warranty.

Customer Questions and Answers

  • Question:  What is an IC693MDL740?  Answer:  The IC693MDL740 is a 12/24 volt DC Positive Logic 0.5 Amp Output module for the GE Fanuc Series 90-30. This module provides 16 output points in 2 groups of 8 with a common power output terminal for each group.
  • Question:  What is this module designed to have?  Answer:  The IC693MDL740 is designed to have positive logic characteristics so it can source current to the loads from the user common or positive power bus.
  • Question:  What is the rated voltage of IC693MDL740?  Answer:  12/24 volts DC
  • Question:  What is the output voltage range of IC693MDL740?  Answer:  12 to 24 volts DC
  • Question:  What kind of power source does this module require?  Answer:  Power to operate IC693MDL740 must be supplied by the user.
  • Question:  With what are the output characteristics compatible?  Answer:  They are compatible with motor starters, solenoids, and indicators.
  • Question:  Into what can the IC693MDL740 be installed?  Answer:  The IC693MDL740 can be installed in any I/O slot of a 5 or 10 baseplate in a Series 90-30 PLC system.
  • Question:  What should I do if my IC693MDL740 is not working properly?  Answer:  If your IC693MDL740 is not correctly working, then your product may need repair.

For more information on the IC693MDL740 DC Positive Logic Output Module of the GE 90-30 Series, please see the Datasheet Manual.
