Product Description

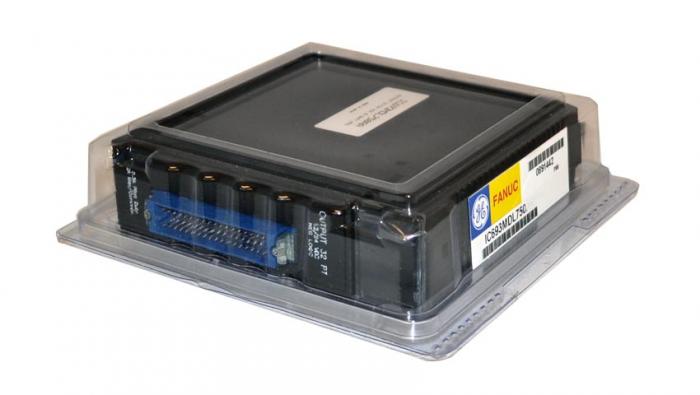

The IC693MDL751 output module is manufactured by GE Fanuc and belongs to the 90-30 series of Programmable Logic Controllers. The module consists of 32 outputs in groups of 4. This therefore implies that each group has 8 outputs. It has a voltage rating of 12/24V DC and delivers between 12 to 24 V DC and a maximum current of 0.3 Amps per point. The output device is connected between the negative power bus and the module output. The output properties of the module are compatible with a wide range of load devices including solenoids, indicators and motor starters. The characteristics include output voltage of 0.24 V maximum, off stage leakage of 0.1 mA maximum and finally a maximum ON & OFF response time of 2 ms. It’s worth noting that power for operation of field devices must be supplied by the user. A 50-pin connector is used to make connections between output circuits and the user’s output devices.

The IC693MDL751 output module is installable on any Input / Output slot of a 5 or 10-slot baseplate in the 90-30 Series PLC. The two options for field writing are the direct method or using a Weidmuller terminal block. Direct method makes use of cables that bear a female connector on the module end and have stripped or tinned wires on the other opposite end. You can fabricate or build your own cable. Alternatively, a pre- wired can be procured with either catalog number IC693CBL308 with a length of 3 feet, the equivalent of 1 meter or number IC693CBL309 which is twice the length (6 feet / 2 meters). On the other hand, a Weidmuller terminal block #912263 can be used with a GE Fanuc pre-wired cable. Ge Fanuc cables no. C693CBL306 with a length of 3 feet, (1meter) or IC693CBL307 with a length of 6 feet (2 meters) have connectors on each end. These connections join the connector module to a connector on the Din rail which is mounted on the Weidmuller terminal block.

Technical Specifications


Rated Voltage: 12/24 volts DC
# of Outputs: 32
Freq: n/a
Output Current: 0.3 A per point
Output Voltage Range:   12 to 24 volts DC (+20%, -15%)
DC Power: Yes



GE Intelligent Platforms / GE Fanuc GE Series 90-30

SKU 2176229  UPC 0753400909281

Part Number: IC693MDL751 / ic693mdl751
Mfr/Brand Name: GE Automation
Mfr Number: IC693MDL751 / ic693mdl751
Type: 12/24 volts DC Pos. Logic Output Module, 32 Output Pts

Technical Specifications

      Troubleshooting and Product Information for IC693MDL751

      Download product information, troubleshooting guides and operation manuals to get your PLC operational.

      IC693MDL751
      Price: $175
      Call for Availability
      2 Year Warranty

      *Need a Specific Revision?

      Repair Your IC693MDL751
      Price: $121
      1 Year PDF Supply Warranty
      Call For Assistance
      1-800-360-6802

      Other IC693MDL751

      Available Revisions:

      Confirm Your Revision Number

      1C693MDL751 , GEFIC693MDL751 , CIMIC693MDL751

      Specifications

      Rated Voltage

      12/24 volts DC

      Output Voltage Range

      12 to 24 volts DC (+20%, –15%)

      Outputs per Module

      32 (four groups of eight outputs each)

      Isolation

      1500 volts between field side and logic side

      Output Current

      0.3 amps maximum per point



      2 amps maximum (each common)

      Output Characteristics



      Output Voltage Drop

      0.24 volts maximum

      Off-state Leakage

      0.1 mA maximum

      On Response Time

      2 ms maximum

      Off Response Time

      2 ms maximum

      Internal Power Consumption

      21 mA (all outputs on) from 5 volt bus on backplane



      Troubleshooting IC693MDL751

      Troubleshooting information is available on IC693MDL751’s website page; it also includes a datasheet user-manual and a wiring diagram.



      Repair your IC693MDL751

      PDF Supply can repair your IC693MDL751 in 3-5 business days. And PDF Supply stands by all of its repairs with a 1 year customer satisfaction warranty.

      Customer Questions and Answers


      • Question:  What is an IC693MDL751?  Answer:  The IC693MDL751 is a 12/24 volt DC Positive Logic 0.3 Amp Output module for the GE Fanuc Series 90-30. This module provides 32 output points in 4 groups of 8 with two common pins for each group.
      • Question:  What is the rated voltage of IC6963MDL751?   Answer:  12/24 volts DC
      • Question:  What is the output voltage range of IC693MDL751?   Answer:  12 to 24 volts DC (+20%, -15%)
      • Question:  What kind of power source does this module require?   Answer:  Power to operate the field devices must be supplied by the user.
      • Question:  With what are the output characteristics compatible?  Answer:  They are compatible with motor starters, solenoids, and indicators.
      • Question:  Into what can the IC693MDL751 be installed?   Answer:  The IC693MDL751 can be installed in any I/O slot of a 5 or 10 baseplate in a Series 90-30 PLC system.
      • Question:  What should I do if my IC693MDL751 is not working properly?   Answer:  If your IC693MDL751 is not correctly working, then your product may need repair.

      For more information on the IC693MDL751 DC Positive Logic Output Module of the GE 90-30 Series, please see the Datasheet Manual.
