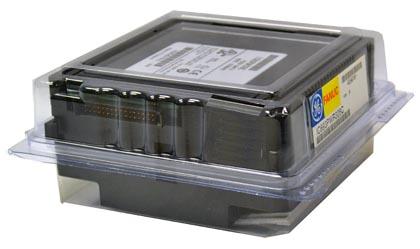

IC693PWR328

★ ★ ★ ★ ★ Rated 5/5 Based on 2 ratings.

Rate your purchase of the IC693PWR328

SKU 2177426  UPC 0799705798595

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Other Available Revisions for the IC693PWR328 IC693PWR328AIC693PWR328BIC693PWR328CIC693PWR328-CAIC693PWR328DIC693PWR328EIC693PWR328-LTIC693PWR328-RR

Common misspellings:
  • 1C693PWR328
  • IC693PWR32b
  • IC693PWR328

Product Description


GE Automation and Controls is the manufacturer of IC693PWR328. It acts as the power supply for the 90-30 Series PLC. It gives a power output of 30 watts for a nominal input of 48 Volts DC input voltage. The voltage range varies from 38 volts DC up to 56 Volts DC. This power supply provides the power outputs which include +5 Volts DC output, +24 Volts DC power output for relay modules, and +24 Volts DC output for isolated modules. The threshold for the combined total of every outputis 30 watts.

The user should consider some important specifications before configuring IC693PWR328. The user should keep a nominal voltage of 48 Volts DC for a range of input Voltage from 38 Volts DC to 56 Volts DC. The user should keep maximum of 50 watts input power at full load. The user can keep output power for 5 Volts DC maximum at 15 watts, 24 Volts DC Relay output maximum at 15 watts, and then 24 Volts DC isolated output at maximum 20 watts. The output voltage for 5 Volts DC is 5.0 to 5.2 Volts DC (5.1 Volts DC nominal). For 24 Volts DC Relay it is 24 Volts DC to 28 Volts DC, and for 24 Volts DC isolated it is 21.5 to 28 Volts DC. The protective limits for overvoltage and overcurrent for 5 Volts DC are 6.4V to 7V and 4A maximum respectively, with a holdup time of 14ms minimum. The power and current input calculations for the power supply use the least input voltage for determining the highest input current and allow a 10-20% margin for variations.


Technical Specifications

Nominal Rated Voltage: 48 volts DC
Input Voltage Range: 38 to 56 volts DC
Input Power: 50 W at full power
Load Capacity: 30 Watts
Location on Baseplates:   Leftmost Slot
Communication: RS 485 Serial Port



Technical Information

Specifications



Nominal Rated Voltage Input Voltage Range

48 VDC

38 to 56 VDC

Input Power

Inrush Current

50 watts maximum at full load

4A peak, 100 ms maximum

Output Power

5 VDC:  15 watts maximum

24 VDC Relay:  15 watts maximum

24 VDC Isolated:  20 watts maximum

NOTE: 30 watts maximum total (all three outputs)

Output Voltage

5 VDC:  5.0 VDC to 5.2 VDC (5.1 VDC nominal)

24 VDC Relay:  24 to 28 VDC

24 VDC Isolated:   21.5 VDC to 28 VDC

Protective Limits Overvoltage: Overcurrent;



5 VDC output:  6.4 to 7 V

5 VDC output:  4 A maximum

Holdup Time:

14 ms minimum

Standards

Refer to data sheet, GFK-0867B, or later version for product standards, and general specifications.

Troubleshooting

Troubleshooting IC693PWR328

Troubleshooting information is available on IC693PWR328’s website page; it also includes a datasheet user-manual and a wiring diagram.



Repair your IC693PWR328

PDF Supply can repair your IC693PWR328 in 3-5 business days. And PDF Supply stands by all of its repairs with a 1 year customer satisfaction warranty.

Customer Questions and Answers

  • Question:  What is an IC693PWR328?  Answer:  The IC693PWR328 is a Standard Power Supply. it is designed for  48 VDC nominal input  with a 30 watt output.  It will accept an input voltage range from 38 VDC to 56 VDC.The specifications for this product are on IC693PWR328's website page.
  • Question:  How many outputs does this power supply provide?  Answer:  The IC693PWR328 provides 3 outputs.
  • Question:  What are those outputs?  Answer:
    • 5 VDC: 15 watts maximum
    • 24 VDC "Relay": 15 watts maximum
    • "Isolated" 24 VDC: 20 watts maximum
  • Question:  What is the load capacity for IC693PWR328?  Answer:  30 watts
  • Question:  What is the input for IC693PWR328?  Answer:  38 to 56 VDC
  • Question:  Where should the power supplies be installed?  Answer:  Power supplies must be installed in the leftmost slot in all baseplates.
  • Question:  What is the start-up surge?  Answer:  At full load, it is 4 amps for 250 milliseconds (maximum).
  • Question:  What does it mean when the OK light is green?  Answer:  It is referring to the CPU. If the OK light is green it means that the CPU has reported back that it is in a fully functional mode.
  • Question:  How can I tell if my IC693PWR328 is not working?  Answer:  If your PWR or OK light is not on, if the power supply is excessively loud, if the PS PORT is not blinking, or if your RUN light does not come on when you have the module running then your product may need repair.

For more information on the IC693PWR328 Standard Power Supply Module of the GE 90-30 Series, please see the Datasheet Manual.



PDFsupply Tech

This power supply provides the power outputs which include +5 Volts DC output, +24 Volts DC power output for relay modules, and +24 Volts DC output for isolated modules.

PDFsupply Tech

This power supply provides the power outputs which include +5 Volts DC output, +24 Volts DC power output for relay modules, and +24 Volts DC output for isolated modules.
