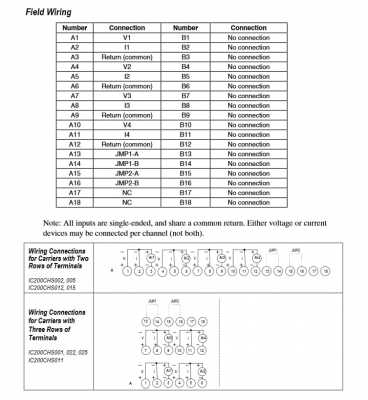

IC200ALG230 Wiring

Rated 4.6/5 based on 16 ratings.
  • IC200ALG230
  • IC200ALG230 Wiring

Product Description



The IC200ALG230 is an Analog Input Module manufactured by GE Fanuc Automation as part of the VersaMax series.
This module interfaces to either four voltage inputs or four current inputs. This device supports 12 bits of voltage per current and one group containing up to four single-ended channels. All inputs are also single-ended and share a common return.



This module receives power from a power supply embedded into the backplane. While an external power supply is not required for this analog input module to function, any user transceivers will require an external power supply. Five volts and a maximum of 125 milliamps of current is consumed by the backplane. Default bipolar input voltage is +/- 10 volts DC with unipolar voltage being anywhere from 0 to 10 volts.



Two onboard LED lights indicate module power status: The OK LED indicates that the backplane is receiving power, and the INT PWR LED indicates that the analog field circuits are receiving power. This module can also report any loss of internal power.



To configure either voltage or current mode on the carrier terminals, two jumpers are used—one jumper for current mode and one jumper for voltage mode. In current mode, the range is anywhere from 4 to 20 milliamps. In voltage mode, the range is 0 to 10 volts. These jumpers are also used to configure either bipolar or unipolar operations while in voltage mode. Devices connected to each channel should be either voltage or current, not both. The IC200ALG230 supports field wiring on carriers with two and three rows of terminals.

Technical Specifications


No. of channels:  4 single ended, one group
Voltage Range: -10 to +10 volts DC
Current Range: 4 - 20 mA
Update Rate: 0.4 ms
Input Filter Response:    5.0 ms
Power Consumption: 125mA from +5V bus





GE Intelligent Platforms / GE Fanuc GE Versamax

SKU 2170028  UPC 0799705802896

Part Number: IC200ALG230 / ic200alg230
Mfr/Brand Name: GE Automation
Mfr Number: IC200ALG230 / ic200alg230
Type: Analog Input Module, 12 Bit Voltage/Current, 4 channels

Troubleshooting and Product Information for IC200ALG230

Download product information, troubleshooting guides and operation manuals to get your PLC operational.

New IC200ALG230
Price: $321
7 In Stock
1 Year PDF Supply Warranty

*Need a Specific Revision?

Reman IC200ALG230
Price: $160
5
In Stock

2 Year PDF Supply Warranty

*What is Remanufactured?

Save
 51%

Other IC200ALG230

Available Revisions:

Confirm Your Revision Number

1C200ALG230 , GEFIC200ALG230 , CIMIC200ALG230

Troubleshooting IC200ALG230

Troubleshooting information is available on IC200ALG230's website page; it also includes a datasheet user-manual and a wiring diagram.

Repair your IC200ALG230

PDF Supply can repair your IC200ALG230 in 3-5 business days. And PDF Supply stands by all of its repairs with a 1 year customer satisfaction warranty.



Customer Questions and Answers


  • Question:  What is an IC200ALG230?  Answer:  The IC200ALG230 is a 4-Channel, 12-Bit, Voltage/Current, Analog Input module from the GE Fanuc Versamax Series.
  • Question:   What are some characteristics of the channels?  Answer:  There are 4 single-ended channels in one group on IC200ALG230.
  • Question:  What does the INT PWR LED indicate?  Answer:  This LED indicates that internally-generated power is present.
  • Question:  What does the OK LED indicate?  Answer:  This LED indicates that backplane power is present.
  • Question:  What is the backplane current consumption?  Answer:  5V output: 125mA maximum
  • Question:  Is there external power supply?  Answer:  No
  • Question:  What are the configuration parameters?  Answer:  Range select, Mode select (jumpers on carrier)
  • Question:  What is the input voltage?  Answer:
    • +/- 10 VDC (default): bipolar
    • 0 to 10 V (configurable): unipolar
  • Question:  What is the filter response?  Answer:  5.0 ms
  • Question:  What is the update rate per module?  Answer:  0.4 ms
  • Question:  What is the input current?  Answer:  4 to 20 mA
  • Question:  What should I do if my IC200ALG230 is not working properly?  Answer:  Your IC200ALG230 may need repair

For more information on the IC200ALG230 4-Channel, 12-Bit, Voltage/Current, Analog Input Module of the GE Fanuc Versamax Series, please see the Datasheet User-Manual.
