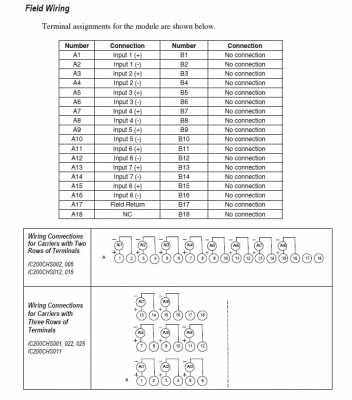

IC200ALG261 Wiring

Rated 4.6/5 based on 7 ratings.
  • IC200ALG261
  • IC200ALG261 Wiring

Product Description



IC200ALG261 is an 8 Channel, 15 Bit Input Module from the GE Fanuc Versamax Series
. This analog input module offers an interface to eight differential voltage inputs with power supplied from a backplane power supply. The unique aspect of this module is that no external power source is needed for operation; however, power for the user transceivers must have an external source. Otherwise, the module features one group of eight differential input channels with 15 bit converter resolution and software configurable selection.

Specific characteristics of the IC200ALG261 include 250 VAC continuous input logic, LED indicators, and 5V output with a 200mA maximum on the backplane current consumption. Diagnostics will alert the user to loss of internal power; however, if severe RF interference occurs, accuracy may be degraded to +/- 1 percent.

Prior to installation, all equipment should be carefully checked for damage. If damage is found, replace the system for proper functioning. Upon installation, if the hot insertion of the module is completed improperly, operation of the other modules on that backplane can be disrupted. Shielded twisted cable is recommended for the analog channel connections and if possible, the cable should be grounded at the source device. If the source device is not an option for grounding, then the I/O module must be used for grounding. An auxiliary I/O terminal strip can be added to the interposing terminal if added shield connections are needed. The IC200ALG261 is compatible with numerous firmware versions that include PLC CPU version 2.1 or later and Ethernet NIU EBI001 version 1.10 or later.

Technical Specifications


No. of channels: 8 differential, one group
Voltage Range: -10 to +10 volts DC
Current Range: N/A
Update Rate: 7.5 ms
Input Filter Response:   N/A
Power Consumption:   200mA from +5V bus





GE Intelligent Platforms / GE Fanuc GE Versamax

SKU 2176328  UPC 0250208251784

Part Number: IC200ALG261 / ic200alg261
Mfr/Brand Name: GE Automation
Mfr Number: IC200ALG261 / ic200alg261
Type: Analog Input Module, 15 Bit Differential Voltage, 8 Channels

Troubleshooting and Product Information for IC200ALG261

Download product information, troubleshooting guides and operation manuals to get your PLC operational.

New IC200ALG261
Price: $801
8 In Stock
1 Year PDF Supply Warranty

*Need a Specific Revision?

Other IC200ALG261

Available Revisions:

Confirm Your Revision Number

1C200ALG261 , GEFIC200ALG261 , CIMIC200ALG261

Troubleshooting IC200ALG261

Troubleshooting information is available on IC200ALG261's website page; it also includes a datasheet user-manual and a wiring diagram.

Repair your IC200ALG261

PDF Supply can repair your IC200ALG261 in 3-5 business days. And PDF Supply stands by all of its repairs with a 1 year customer satisfaction warranty.



Customer Questions and Answers


  • Question:  What is an IC200ALG261?  Answer:  The IC200ALG261 is an 8-Channel, 15-Bit, Voltage, Differential, Analog Input module from the GE Fanuc Versamax Series.
  • Question:  What does IC200ALG261 provide?  Answer:  This module provides an interface to 8 analog differential voltage inputs.
  • Question:  From where does IC200ALG261 receive power?  Answer:  This module receives power from the backplane power supply.
  • Question:  Is an external power source required for operation of IC200ALG261?  Answer:  No.
  • Question:  From where must power be supplied for the user's transceivers?  Answer:  It must be supplied from an external source.
  • Question:  What are some of the features of IC200ALG261?   Answer:
    • 8 differential input channels, 1 group
    • 15 bit converter resolution
    • Software-configurable selection of default/hold last state operation
  • Question:  The green OK LED indicates what?  Answer:  This LED is on when backplane power is present, when internally generated field power is functioning properly, when the module has been configured, and when the module has been recognized on the backplane.
  • Question:  What should I do if my IC200ALG261 is not working properly?  Answer:  Your IC200ALG261 may need repair

For more information on the IC200ALG261 8-Channel, 15-Bit, Voltage, Differential, Analog Input Module of the GE Fanuc Versamax Series, please see the Datasheet User-Manual.
