IC200ALG265

Buy NowIC200ALG265
IC200ALG265

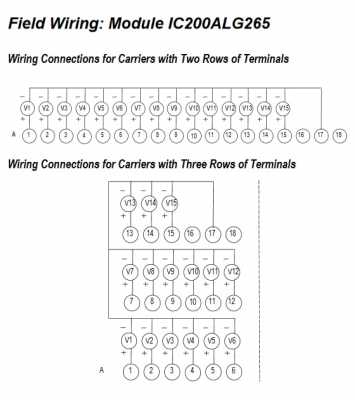

IC200ALG265 Wiring

Rated 4.7/5 based on 14 ratings.
  • IC200ALG265
  • IC200ALG265 Wiring

Product Description



The IC200ALG265 is a 15-Channel, 15-Bit Voltage Analog Input Module manufactured by GE Fanuc for its Versamax Series
. This module acts as an interface to 15 voltage inputs.
The IC200ALG265 module is single-ended and all inputs share a common return. The module is rated for use in SIL2 applications, and it features improved overvoltage protection and improved internal diagnostics. Typically, the IC200ALG265 protects against voltages up to 30V DC. It is approved by the Technical Inspection Association (TUV) for use in the safety-relevant section of a GMR system.

The IC200ALG265 has an input voltage of between -10 V to +10 V and an input impedance of 100 K Ohms minimum. The IC200ALG265 does not require any external power source to run its operations; however, power for the user’s transceivers must be supplied from an external source. This unit is compatible with CPU/NIU, and they are in control of performing intelligent processing for this module. The IC200ALG265 provides 15 words of analog data input, and in the event of a module failure or loss of power, analog inputs are software-configurable to either default or hold the last state.

The current input module is equipped with a jumper on the carrier terminals that selects either 4-20mA or 0-20mA input ranges. However, it is important to know that both input and output modules report internal hardware error upon detection of an A/D conversion malfunction in excess of +/-6%. The module detects this malfunction by applying a known stimulus to the A/D conversion path and authenticating the expected result.

The IC200ALG265 turns off the OK LED whenever an expected error occurs three times in a row. It reports the malfunction to the CPU/NIU. If this occurs, the module must be replaced or power cycled to clear the error.

Technical Specifications


No. of channels: 15 single-ended, one group
Voltage Range: -10 to +10 volts DC
Current Range: N/A
Update Rate: 7.5 ms
Input Filter Response:   N/A
Power Consumption: 150mA from +5V bus







GE Intelligent Platforms / GE Fanuc GE Versamax

SKU 2174324  UPC 0387757191886

Part Number: IC200ALG265 / ic200alg265
Mfr/Brand Name: GE Automation
Mfr Number: IC200ALG265 / ic200alg265
Type: Analog Input Module, 15 bit Voltage, 15 channels, TUV approved.

Troubleshooting and Product Information for IC200ALG265

Download product information, troubleshooting guides and operation manuals to get your PLC operational.

New IC200ALG265
Price: $774
5 In Stock
1 Year PDF Supply Warranty

*Need a Specific Revision?

Other IC200ALG265

Available Revisions:

Confirm Your Revision Number

1C200ALG265 , GEFIC200ALG265 , CIMIC200ALG265

Troubleshooting IC200ALG265

Troubleshooting information is available on IC200ALG265's website page; it also includes a datasheet user-manual and a wiring diagram.

Repair your IC200ALG265

PDF Supply can repair your IC200ALG265 in 3-5 business days. And PDF Supply stands by all of its repairs with a 1 year customer satisfaction warranty.



Customer Questions and Answers


  • Question:  What is an IC200ALG265?  Answer:  The IC200ALG265 is a 15-Channel, 15-Bit, Voltage, TUV Approved, Analog Input module from the GE Fanuc Versamax Series.
  • Question:  What are some of the characteristics of the channels?  Answer:  There are 15 single-ended channels, all in one group.
  • Question:  What are some of the characteristics of the IC200ALG265?  Answer:
    • This module is an enhanced version of the IC200ALG263
    • This module is approved by TUV for use in the safety-relevant portion of a GMR system.
    • This module protects against voltages up to 30VDC.
  • Question:  What is the input voltage?  Answer:  -10 V to +10 V
  • Question:  What is the input impedance?  Answer:  100 K Ohms minimum
  • Question:  What is the update rate per module?  Answer:  7.5 ms
  • Question:  What is IC200ALG265 compatible with?  Answer:  It is compatible with all VersaMax carriers and CPU/NIUs except the DeviceNet NIU (IC200DBI001).
  • Question:  What should I do if my IC200ALG265 is not working properly?  Answer:  Your IC200ALG265 may need repair

For more information on the IC200ALG265 15-Channel, 15-Bit, Voltage, TUV Approved, Analog Input Module of the GE Fanuc Versamax Series, please see the Datasheet User-Manual.
