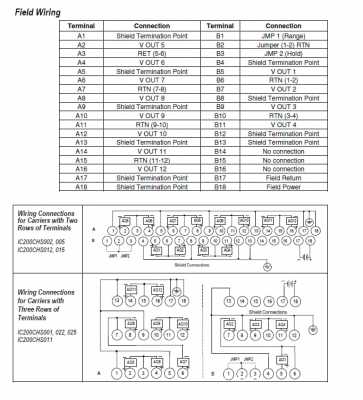

IC200ALG327 Wiring

Rated 4.7/5 based on 9 ratings.
  • IC200ALG327
  • IC200ALG327 Wiring

Product Description

The IC200ALG327 is a 12-Channel, 13-Bit Voltage, Analog Output module from the GE Fanuc Versamax Series
. The IC200ALG327 is equipped with 12 analog voltage outputs. Output voltage range can be -10VDC to +10VDC (bipolar) while the module’s output range can be 0V to +10VDC (unipolar).

The CPU or Network Interface Unit is responsible for intelligent processing, and an external power supply is required for the outputs. The IC200ALG327 module is equipped with LED indicators for status observations. When the green OK LED is on, this is indication to the user that backplane power is currently going to the IC200ALG327 module. The IC200ALG327 output range is default and to alter the output range, a jumper is used. The module also is set up with a jumper for the outputs to retain their last states if backplane power or communications is interrupted.

The IC200ALG327 module outputs will stay in the previous state or until module receives different output data from the backplane or until field power is detached. Jumpers located on the carrier can be used to choose the output range and output default mode. If no jumper is connected on pins B1 and B2, the outputs are organized for their default range. If jumpers are installed, which is necessary only if field or backplane power has been removed, the output range will change.

Technical Specifications

No. of channels:  12 single-ended, one group
Voltage Range: +/- 10.24 VDC, 0 to +10 VDC
Current Range: N/A
Update Rate: 15 ms
LED Indicators:  FLD PWR, OK
Power Consumption:    50 mA from +5V bus



GE Intelligent Platforms / GE Fanuc GE Versamax

SKU 2173409  UPC 0193021056719

Part Number: IC200ALG327 / ic200alg327
Mfr/Brand Name: GE Automation
Mfr Number: IC200ALG327 / ic200alg327
Type: Analog Output Module, 13 Bit Voltage, 12 Channels

Troubleshooting and Product Information for IC200ALG327

Download product information, troubleshooting guides and operation manuals to get your PLC operational.

New IC200ALG327
Price: $1,144
5 In Stock
1 Year PDF Supply Warranty

*Need a Specific Revision?

Reman IC200ALG327
Price: $572
In Stock

2 Year PDF Supply Warranty

*What is Remanufactured?


Other IC200ALG327

Available Revisions:

Confirm Your Revision Number

1C200ALG327 , GEFIC200ALG327 , CIMIC200ALG327

Troubleshooting IC200ALG327

Troubleshooting information is available on IC200ALG327's website page; it also includes a datasheet user-manual and a wiring diagram.

Repair your IC200ALG327

PDF Supply can repair your IC200ALG327 in 3-5 business days. And PDF Supply stands by all of its repairs with a 1 year customer satisfaction warranty.


Customer Questions and Answers

  • Question:  What is an IC200ALG327?  Answer:  The IC200ALG327 is an 12-Channel, 13 Bit Voltage, Analog Output module from the GE Fanuc Versamax Series.
  • Question:  What are some characteristics of the channels?  Answer:  There are 12 single-ended channels, all in one group.
  • Question:  What does the FLD PWR LED indicate?  Answer:  This LED indicates that field power is present.
  • Question:  What does the OK LED indicate?  Answer:  This LED indicates that backplane power is present.
  • Question:  What is the backplane current consumption?  Answer:  5V output: 50 mA maximum
  • Question:  What are the configuration parameters?  Answer:  Range, output default
  • Question:  What is the output voltage?  Answer:  -10.24 to +10.24 VDC (bipolar range), 0 to +10.24 VDC (unipolar range)
  • Question:  What is the update rate per module?  Answer:  15 mSec maximum
  • Question:  What is the output default?  Answer:  Hold Last State (default), 0V (configurable)
  • Question:  What should I do if my IC200ALG327 is not working properly?  Answer:  Your IC200ALG327 may need repair

For more information on the IC200ALG327 12-Channel, 13 Bit Voltage, Analog Output Module of the GE Fanuc Versamax Series, please see the Datasheet User-Manual.
