IC200ALG331

Buy NowIC200ALG331
IC200ALG331

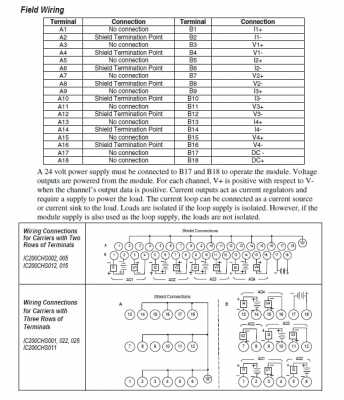

IC200ALG331 Wiring

Rated 4.5/5 based on 18 ratings.
  • IC200ALG331
  • IC200ALG331 Wiring

Product Description


IC200ALG331 is a 4 Channel Isolated 16 Bit, Voltage Current Analog Output module from the GE Fanuc Versamax Series.
This analog output module provides four analog outputs that are isolated on 4-20mA current output channels with software configuration. The IC200ALG331 has no jumpers or switches but boasts high accuracy factory calibration with 16 bit converter resolution. In addition, the IC200ALG331 features a selection of default/hold last state operation and per channel selection of default values. This module can provide field recalibration on command with per channel scaling, selection of alarm levels, and under/over range diagnostic levels.

As for the actual module, an external 24 volt power supply is necessary for the outputs, and in current mode, a separate power supply for isolated outputs is also required. The power supply must be connected to B17 and 18 to operate this version of the module with voltage outputs powered from the module. Current outputs act as regulators and require a supply to offer power to the load. Please note if the module supply is used as a loop supply, the loads are not isolated.

Four separate words of analog output data can be received by the IC200ALG331 module from either a CPU or NIU. LED indicators demonstrate the presence of both field and logic power for the field side analog circuits only. If the field power or backplane is not receiving power, the LED will turn off. This particular module has the OK LED placed before the field power LED in the A slot, unlike other models. The backplane current is at 5 volts output with a 10mA maximum or a 3.3 volt output with 115mA maximum. Output characteristics include an update rate of 7 ms max with crosstalk rejection of 70dB minimum.

Technical Specifications


No. of Inputs: 4 isolated
Voltage Range: -10 to +10 volts DC
Current Range: 4 - 20 mA
Update Rate: 7 ms
LED Indicators: FLD PWR, OK
Power Consumption:     15 mA from +5V bus





GE Intelligent Platforms / GE Fanuc GE Versamax

SKU 2172414  UPC 0759070027027

Part Number: IC200ALG331 / ic200alg331
Mfr/Brand Name: GE Automation
Mfr Number: IC200ALG331 / ic200alg331
Type: Analog Output Module, 16 Bit Voltage/Current, 4 Channels

Troubleshooting and Product Information for IC200ALG331

Download product information, troubleshooting guides and operation manuals to get your PLC operational.

New IC200ALG331
Price: $653
4 In Stock
1 Year PDF Supply Warranty

*Need a Specific Revision?

Other IC200ALG331

Available Revisions:

Confirm Your Revision Number

1C200ALG331 , GEFIC200ALG331 , CIMIC200ALG331

 Troubleshooting IC200ALG331

Troubleshooting information is available on IC200ALG331's website page; it also includes a datasheet user-manual and a wiring diagram.

Repair your IC200ALG331

PDF Supply can repair your IC200ALG331 in 3-5 business days. And PDF Supply stands by all of its repairs with a 1 year customer satisfaction warranty.



Customer Questions and Answers


  • Question:  What is an IC200ALG331?  Answer:  The IC200ALG331 is a 4-Isolated-Channel, 16-Bit, Voltage/Current, Analog Ouput module from the GE Fanuc Versamax Series.
  • Question: In current mode, what is required?  Answer:  In current mode, a separate power supply may be required for isolated outputs.
  • Question:  What are IC200ALG331's features?  Answer:
    • 4 isolated 4-20 mA current output channels
    • 16-bit converter resolution
    • Software configuration, no jumpers or switches
    • High-accuracy factory calibration
  • Question:  Which of IC200ALG331's features are software-configurable?  Answer:
    • Per-channel selection of 4-20 mA current or +/- 10 V voltage outputs
    • Selection of default/hold last state operation
    • Per-channel selection of default values
    • Per-channel selection of under-range and over-range diagnostics levels
    • Per-channel selection of alarm levels
    • Per-channel scaling
    • Field re-calibration on command
  • Question:  What does the green FLD PWR LED indicate?  Answer:  This LED indicates the presence of both backplane power and field power for the analog field-side circuits. The absence of either backplane or field power will turn off the FLD PWR LED.
  • Question:  What does the OK LED indicate?  Answer:
    • This LED indicates module status:
      • On green indicates normal operation
      • Flashing green indicates boot mode or update
      • Flashing amber indicates self-diagnostic error
  • Question:  What should I do if my IC200ALG331 is not working properly?  Answer:  Your IC200ALG331 may need repair

For more information on the IC200ALG331 4-Isolated-Channel, 16-Bit, Voltage/Current, Analog Output Module of the GE Fanuc Versamax Series, please see the Datasheet User-Manual.
