IC200ALG432

Buy NowIC200ALG432
IC200ALG432

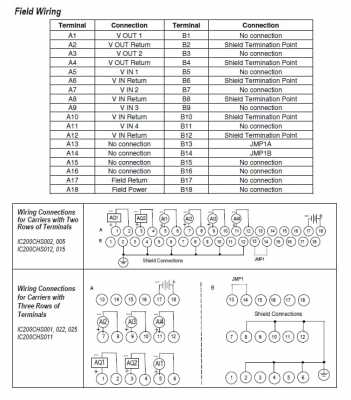

IC200ALG432 Wiring

Rated 4.4/5 based on 19 ratings.
  • IC200ALG432
  • IC200ALG432 Wiring

Product Description



IC200ALG432 is an Analog Mixed Module with 12 Bit +/-10VDC Input Current.
It offers four channels with two-channel output. A 24V external power supply is required for the outputs with inputs powered by the transceiver’s external power source all in one group. The CPU or NIU executes intelligent processing for the IC200ALG432 module. Four words of analog input data and two words of analog output data are included.

The IC200ALG432 uses LED indicators to show the presence of user-side power for analog field side circuits and when backplane power is present. The LED will emit green when functioning as expected. The module is able to report loss of user side power faults for field side circuits when correctly installed and is conveniently set up with a jumper for the outputs. The IC200ALG432 can be set to hold last states or defaults even if the backplane or field power is temporarily interrupted. The module reports loss of user side power faults for the field side circuits.

The recommended range for the external power source for this module is +18 to +30VDC. This includes ripple with a consumption range of 160mA. The input range of +/- 10 VDC should be noted. Shielded cable is recommended for installation with grounding at the source device or at the I/O module.

Technical Specifications


No. of channels:  4 single-ended inputs, one group & 2 single-ended outputs, one group
Input Voltage: -10 to +10 volts DC
Output Voltage: -10.24 to +10.24 volts DC
Update Rate: 0.4 ms
Input Filter Response:    5.0 ms
Power Consumption: 60 mA from +5V bus





GE Intelligent Platforms / GE Fanuc GE Versamax

SKU 2175000  UPC 0167242100568

Part Number: IC200ALG432 / ic200alg432
Mfr/Brand Name: GE Automation
Mfr Number: IC200ALG432 / ic200alg432
Type: Analog Mixed Module, 12 Bit, +/-10VDC Input 4 Channels, and +/-10VDC Output 2 Channels

Troubleshooting and Product Information for IC200ALG432

Download product information, troubleshooting guides and operation manuals to get your PLC operational.

New IC200ALG432
Price: $521
5 In Stock
1 Year PDF Supply Warranty

*Need a Specific Revision?

Other IC200ALG432

Available Revisions:

Confirm Your Revision Number

1C200ALG432 , GEFIC200ALG432 , CIMIC200ALG432

Troubleshooting IC200ALG432

Troubleshooting information is available on IC200ALG432's website page; it also includes a datasheet user-manual and a wiring diagram.

Repair your IC200ALG432

PDF Supply can repair your IC200ALG432 in 3-5 business days. And PDF Supply stands by all of its repairs with a 1 year customer satisfaction warranty.



Customer Questions and Answers


  • Question:  What is an IC200ALG432?  Answer:  The IC200ALG432 is a 12-Bit, 4-Channel, Input Voltage, and 2 Channel, Output Voltage Analog Mixed module from the GE Fanuc Versamax Series.
  • Question:   What are some characteristics of the channels?  Answer:  There are 4 single-ended channels for input voltage and 2 single-ended channels for output voltage on IC200ALG432.
  • Question:  What does the FLD PWR LED indicate?  Answer:  This LED indicates that user-side power is present.
  • Question:  What does the OK LED indicate?  Answer:  This LED indicates that backplane power is present.
  • Question:  What is the backplane current consumption?  Answer:  5V output: 60mA maximum
  • Question:  Is there external power supply?  Answer:  Yes, an external 24V power supply is required for the outputs.
  • Question:  What are the configuration parameters?  Answer:  Output default
  • Question:  What is the filter response?  Answer:  5.0 ms
  • Question:  What is the update rate per module?  Answer:  0.4 ms
  • Question:  What is the input voltage?  Answer:  -10  to +10 VDC
  • Question:  What should I do if my IC200ALG432 is not working properly?  Answer:  Your IC200ALG432 may need repair

For more information on the IC200ALG432 12-Bit, 4-Channel, Input Voltage, and 2 Channel, Output Voltage Analog Mixed Module of the GE Fanuc Versamax Series, please see the Datasheet User-Manual.
