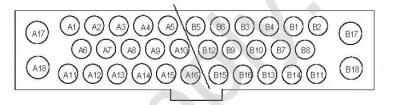

IC200CHS003 Wiring

Rated 4.4/5 based on 11 ratings.
  • IC200CHS003
  • IC200CHS003 Wiring

IC200CH003 is a connector-style carrier I/O manufactured by GE Fanuc automation. The IC200CH003 I/O carrier weighs 0.113 kilograms and comes with a 36-pin connector used for attaching an Input / Output cable.  The carrier gives a provision for backplane communications, mounting as well as field wiring for one Input / Output module. You can locate a module latch hole for fastening the module onto the carrier.  The carrier also provides fast attachment for wiring up to 32 input / output points and 4 common power connections.

During rail mounting, the IC200CH003 I/O carrier easily snaps onto DIN rail with the following dimensions: 7.5 mm x 35 mm.  To provide EMC protection, the DIN must be electrically grounded. They must also have a conductive and corrosion-resistant finish. Field wiring connections are done directly onto the connector style itself with the help of contacts which are crimped to the wire ends. I/O devices can be wired directly to Interposing I/O Terminals. For installation of a pre-wired connecting cable, the cable connector is placed over the connector located on the carrier and later pressed downward until the latch engages with the connector.

To remove the cable, the connector must be held and pressed up on the latch to release the connector. Sometimes, the operating equipment might get hot due to high ambient temperature. When this happens, exercise caution when handling the connector. Be advised not to touch it directly. Also steer clear of exposed connector pins. A connector kit for fabricating custom cables is available and comes with a connector and a cover, 6 large contacts, 2 screws, and 36 small contacts. The IC200CH003 carrier can be used with all VersaMax modules except for the following due to their high isolation requirements:

IC200MDL144 with voltage Input 240 VAC 4 Point Isolated Module

IC200MDD850 Mixed 240 VAC Isolated 4 Point

Output Relay 2.0A Isolated 8 Point Module
