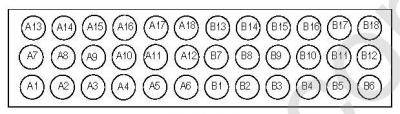

IC200CHS025 Wiring

Rated 4.4/5 based on 16 ratings.
  • IC200CHS025
  • IC200CHS025 Wiring

Product Description

The IC200CHS025 is a compact spring-style Input / Output carrier with 36 IEC box-style terminals. It is manufactured by GE Fanuc for the VersaMax family.
The IC200CHS025 is tasked with providing backplane communications, field wiring, and mounting for one I/O module.

The IC200CHS025 easily snaps onto a 7.5 mm x 35 mm DIN rail. For the purposes of providing electromagnetic compatibility (EMC), the DIN rail must be electrically grounded. The DIN rail should have a conductive corrosion-resistant unpainted finish. For maximum resistance to mechanical vibration and shock, the IC200CHS025 must also be panel-mounted.

Features of this item include dialing keys that ensure correct installations of the carrier’s module; keys that always match the keys at the bottom of the module; and connectors used in mating between carriers to enhance backplane installations connection without the need for more tools. A module latch hole assists in securing the module to the carrier.

GE Intelligent Platforms / GE Fanuc GE Versamax

SKU 2173453  UPC 0155388378095

Compact I/O carrier spring style IC200C IC200CH IC200CHS

Troubleshooting and Product Information for IC200CHS025

Download product information, troubleshooting guides and operation manuals to get your PLC operational.

New IC200CHS025
Price: $67
30 In Stock
1 Year PDF Supply Warranty

*Need a Specific Revision?

Reman IC200CHS025
Price: $29
In Stock

2 Year PDF Supply Warranty

*What is Remanufactured?


Other IC200CHS025

Available Revisions:

Confirm Your Revision Number

1C200CHS025 , GEFIC200CHS025 , CIMIC200CHS025

The IC200CHS025

The IC200CHS025

Troubleshooting IC200CHS025

Troubleshooting information is available on IC200CHS025's website page; it also includes a datasheet user-manual and a wiring diagram.

Price and Availability for IC200CHS025

Price for IC200CHS025 is available by calling 1-800-360-6802 or by filling out our "fast quote". PDF Supply has over 30 years of experience with PLCs and has experience with the GE Fanuc Versamax Series dating back to 1995. IC200CHS025 comes with a minimum 1 year PDF Supply warranty. Returns are accepted for most unopened items. It does require pre-approval and RMA.

Repair your IC200CHS025

PDF Supply can repair your IC200CHS025 in 3-5 business days. And PDF Supply stands by all of its repairs with a 2 year customer satisfaction warranty.
