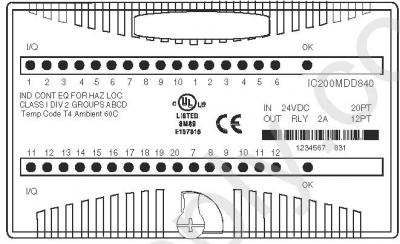

IC200MDD840 Wiring

Rated 4.4/5 based on 14 ratings.
  • IC200MDD840
  • IC200MDD840 Wiring

Product Description


The IC200MDD840 is a discrete input and output module manufactured by General Electric Intelligent Platforms as part of the VersaMax series of components.
This device has 20 discrete inputs and 12 relay outputs. Inputs for this device are grouped into two rows of 10. These input points come in two different types: positive logic and sourcing-type. The input points receive electrical current from the attached devices and then return the electrical current on the common. The 12-relay outputs for this device are divided into two groups of six points, with each group able to sustain a maximum of eight amperes.


The physical dimensions for this device are as follows: 4.3 inches (110 millimeters) wide, 2.63 inches (66.8 millimeters) tall, and 1.956 inches (50 millimeters) deep. Note: These dimensions do not include the carrier height or mating connections.


This device draws power directly from the rack-mounted connection backplane; however, an external power supply will be required for all output loads. The input voltage for this device is 24 volts direct current (VDC). The output voltage for this device varies from 0 to 125 VDC, with 5, 24, and 125 VDC being nominal; and 0 to 265 volts alternating current (VAC), with 120 and 240 VAC being nominal. When inputs and outputs are in the “on” state, the current is 2.0 to 5.5 milliamps, and the current for the “off” state is 0 to 0.5 milliamps.



Processing for this device is handled by either a central processing unit (CPU) or network interface unit (NIU). The IC200MDD840 does not support channel-to-channel isolation, nor does it possess protection measures such as internal fuses or snubbers.

GE Intelligent Platforms / GE Fanuc GE Versamax

SKU 2176206  UPC 0898151029908

Mixed 24VDC POS LOG input group 20 point / output relay 2.0 amp per point 12 point IC200M IC200MD IC200MDD

Troubleshooting and Product Information for IC200MDD840

Download product information, troubleshooting guides and operation manuals to get your PLC operational.

New IC200MDD840
Price: $305
8 In Stock
1 Year PDF Supply Warranty

*Need a Specific Revision?

Reman IC200MDD840
Price: $130
2
In Stock

2 Year PDF Supply Warranty

*What is Remanufactured?

Save
 58%

Other IC200MDD840

Available Revisions:

Confirm Your Revision Number

1C200MDD840 , GEFIC200MDD840 , CIMIC200MDD840

The IC200MDD840

The IC200MDD840

Troubleshooting IC200MDD840

Troubleshooting information is available on IC200MDD840's website page; it also includes a datasheet user-manual and a wiring diagram.

Price and Availability for IC200MDD840

Price for IC200MDD840 is available by calling 1-800-360-6802 or by filling out our "fast quote". PDF Supply has over 30 years of experience with PLCs and has experience with the GE Fanuc Versamax Series dating back to 1995. IC200MDD840 comes with a minimum 1 year PDF Supply warranty. Returns are accepted for most unopened items. It does require pre-approval and RMA.

Repair your IC200MDD840

PDF Supply can repair your IC200MDD840 in 3-5 business days. And PDF Supply stands by all of its repairs with a 2 year customer satisfaction warranty.
