IC200MDD841

Rated 4.3/5 Based on 9 ratings.

Rate your purchase of the IC200MDD841
Loading...

SKU 2175462  UPC 0668183260729

disclaimer

New

$439

7 In Stock

✓  2 Year PDF Supply Warranty

*Need a Specific Revision?

New Surplus

$375

1 In Stock

✓  3 Year PDF Supply Warranty

*What is New Surplus?

Reman

$163

3 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Technical Specifications for IC200MDD841

ManufacturerGE Fanuc
SeriesVersamax
Part NumberIC200MDD841
Product TypeHigh-Speed Counter Module
Inputs20
Outputs12
Total I/O Points32
Number of Type A High-Speed Counters4
Voltage24V DC
Current30 mA

Product Description



The IC200MDD841 is a VersaMax high-speed counter module from GE Fanuc with mixed discrete inputs and outputs. This device has 20 positive logic inputs and 12 positive logic outputs, some of which are configurable. Devices connected to these input and output connectors have two different states: on or off. This device does not provide any isolation for individual channels or protections such as internal fuses.



This device allows for several different input and output configuration settings such as High-Speed Counter, Pulse Width Modulation, Pulse Train, and Ramping Pulse Train. When the IC200MDD841 is in the default configuration, this device has four type A high-speed counter inputs and outputs. The high-speed counters can process pulse signals at 80KHz. In addition, the default configuration has 12 standard inputs and eight standard outputs.



Power for the IC200MDD841 is provided by the backplane, but any external output devices will require a separate power supply. When connected to the 5-volt backplane power source, this device consumes 30 milliamps of current. All inputs and outputs for this device use 24 volts DC. The on and off state current for the IC200MDD841 is 3-8 milliamps and 0-0.5 milliamps, respectively.



The height of this device is 66.8 mm, or 2.63 inches. The width is 110 mm, or 4.3 inches. The depth is 50 mm, or 1.956 inches. The IC200MDD841 also provides error detection capabilities with the capability to display up to 13 words of status data. On-board LED lights also display status information.

The IC200MDD841 counter module is a high-speed counter module manufactured by GE Fanuc/GE Intelligent Platforms as a member of the Versamax product line. It comes with mixed discrete output and input points that include 20 positive logic inputs and 12 logic outputs, with some that can be configured. The GE Fanuc IC200MDD841 high-speed counter module comes without protection features like individual channels isolation or internal fuses. This unit has support for different I/O configuration settings such as the ramping pulse train, pulse width modulation, high-speed counters, and pulse train configuration. When it is set to its default configuration settings, it features 4 Type A high-speed counter I/O points. The high-speed counters process pulse signals at 80 kilohertz of speed; and in the default configuration, it has 12 standard input points and 8 standard output points.

The GE Fanuc IC200MDD841 high-speed counter features a backplane power supply that has the power supplied from a different source and it is intended to provide power for all external output devices. When this high-speed counter connects to a backplane source of power with a rating of 5 Volts, then it operates with a current rating of 30 milliamps. The I/O of the GE Fanuc IC200MDD841 high-speed counter run on 24 volts DC, and the on-state current rating is 3 to 8 milliamps, while the off-state current rating is 0 to 0.5 milliamps. Another specification of this module includes its shipping dimensions of 2.63 x 4.3 x 1.956 inches. This high-speed counter module provides error detection functionalities, and it has built-in LED indicators that shows the status information of the device.

Technical Information

The IC200MDD841

The IC200MDD841

Troubleshooting IC200MDD841

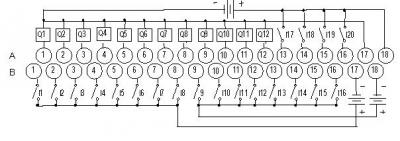

Troubleshooting information is available on IC200MDD841's website page; it also includes a datasheet user-manual and a wiring diagram.

Price and Availability for IC200MDD841

Price for IC200MDD841 is available by calling 1-800-360-6802 or by filling out our "fast quote". PDF Supply has over 30 years of experience with PLCs and has experience with the GE Fanuc Versamax Series dating back to 1995. IC200MDD841 comes with a minimum 1 year PDF Supply warranty. Returns are accepted for most unopened items. It does require pre-approval and RMA.

Repair your IC200MDD841

PDF Supply can repair your IC200MDD841 in 3-5 business days. And PDF Supply stands by all of its repairs with a 2 year customer satisfaction warranty.
