IC200MDL240

Buy NowIC200MDL240
IC200MDL240

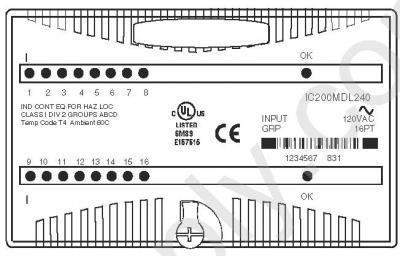

IC200MDL240 Wiring

Rated 4.6/5 based on 14 ratings.
  • IC200MDL240
  • IC200MDL240 Wiring

Product Description


IC200MDL240 is a VersaMax AC Input Module with positive logic or sourcing type inputs.
This means the inputs will receive current from AC input devices and then return the current on the common. To accomplish this, input devices are connected between the input and common terminals. The IC200MDL240 provides two groups of eight discrete inputs. Power for this particular module is derived from the backplane with intelligent processing performed from the CPU or NIU. Each module comes standard with LED indicators for on/off state and to confirm the presence of backplane power.

Prior to installation of the IC200MDL240 module, all parts should be carefully inspected for damage. If damage is found, make note and request a replacement part. Placing a damaged unit into a CPU can cause additional problems. Wiring photos and instructions are available online. Users should note that if hot insertion is done improperly, other modules on the same backplane could be disrupted.

No derating is needed if mounted vertically; however, those used at 132 VAC do require derating, though not at 120 VAC. For isolation, the user input to logic and frame ground is at 250 VAC continuous or 1500 VAC for one minute. Input voltage for this module is 0 to 132 VAC and 120 VAC nominal. This includes on response time on 1 cycle maximum and off response time of two cycles maximum. Installers should note that this module carries an explosion hazard, and no components should be substituted.

GE Intelligent Platforms / GE Fanuc GE Versamax

SKU 2174113  UPC 04763191609

Input 120VAC (2 group of 8) 16 point. IC200M IC200MD IC200MDL

Troubleshooting and Product Information for IC200MDL240

Download product information, troubleshooting guides and operation manuals to get your PLC operational.

New IC200MDL240
Price: $244
21 In Stock
1 Year PDF Supply Warranty

*Need a Specific Revision?

Reman IC200MDL240
Price: $125
6
In Stock

2 Year PDF Supply Warranty

*What is Remanufactured?

Save
 49%

Other IC200MDL240

Available Revisions:

Confirm Your Revision Number

1C200MDL240 , GEFIC200MDL240 , CIMIC200MDL240

The IC200MDL240

The IC200MDL240

Troubleshooting IC200MDL240

Troubleshooting information is available on IC200MDL240's website page; it also includes a datasheet user-manual and a wiring diagram.

Price and Availability for IC200MDL240

Price for IC200MDL240 is available by calling 1-800-360-6802 or by filling out our "fast quote". PDF Supply has over 30 years of experience with PLCs and has experience with the GE Fanuc Versamax Series dating back to 1995. IC200MDL240 comes with a minimum 1 year PDF Supply warranty. Returns are accepted for most unopened items. It does require pre-approval and RMA.

Repair your IC200MDL240

PDF Supply can repair your IC200MDL240 in 3-5 business days. And PDF Supply stands by all of its repairs with a 2 year customer satisfaction warranty.
