Product Description

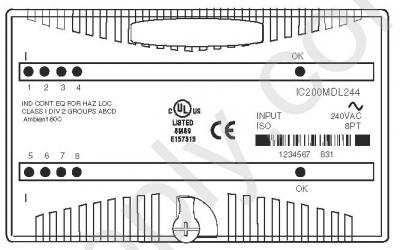

IC200MDL244 is a VersaMax 240 VAC Isolated Input Module with Eight points.
This particular module provides eight discrete inputs that are positive logic or of the sourcing type. These inputs receive current from AC input devices while the return current is on the common. Each input has an individual and separate return. To power the IC200MDL244, the operation originates in the backplane. The CPU or NIU is the supplier of intelligent processing for the input module. LEDs are standard and demonstrate both backplane power and on/off state for each input point.

Isolation of user input to logic and frame ground is 250 VAC continuous or 1500 VAC for one minute with input voltage of 240 VAC nominal or 0 to 264 VAC. On and off state voltage is 155 to 264 VAC and 0 to 40 VAC, respectively, with on and off state current at 7mA minimum and 1.5mA maximum. This module has input impedance of 38.5k Ohms at 60HZ and 46.3k Ohms at 50Hz, both typical.

When installing the IC200MDL244, the user should first check all components for any damage that may have occurred during shipping. If any part of the component is damaged, it should be replaced as damage could affect overall unit performance. When installing, wiring diagrams may be found online. The installer should note that these modules should only be used with compact terminal style carriers or a terminal style carrier. The use of a connector style carrier is not approved for this module type due to higher isolation requirements. If hot insertion is done incorrectly, other modules on the backplane can be negatively affected, so proper procedures should be closely followed.

GE Intelligent Platforms / GE Fanuc GE Versamax

SKU 2173135  UPC 0891624231976

Input 240VAC isolated 8 point IC200M IC200MD IC200MDL

Troubleshooting and Product Information for IC200MDL244

Download product information, troubleshooting guides and operation manuals to get your PLC operational.

New IC200MDL244
Price: $199
8 In Stock
1 Year PDF Supply Warranty

*Need a Specific Revision?

Other IC200MDL244

Available Revisions:

Confirm Your Revision Number

1C200MDL244 , GEFIC200MDL244 , CIMIC200MDL244

    Need To Order A Specific Revision?

    Give us a call at 1-800-360-6802 or 1-919-535-3180.

    We can help you with your Revision specific needs.
