IC200MDL632 Wiring

Rated 4.6/5 based on 9 ratings.
  • IC200MDL632
  • IC200MDL632 Wiring

Product Description

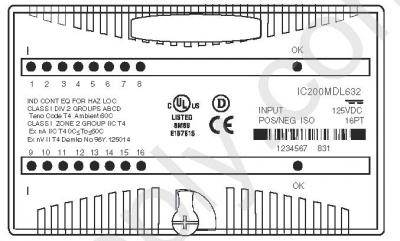

IC200MDL632 is a discrete input module
manufactured by GE Fanuc for the VersaMax series. The IC200MDL632 provides 16 discrete remote inputs. These inputs can be either positive logic inputs that receive power from input devices or negative-logic inputs that receive power from the return and return it to the input device. The input devices connect the input terminals and return terminals.

The IC200MDL632 is powered by the backplane and provides 16 bits of discrete input data. This module’s intelligent processes are performed by the CPU/ NIU. The IC200MDL632 comes with individual green LEDs lights that indicate the on/off state of each input point. For the LEDs to provide status of inputs, backplane power must be available.

The IC200MDL632 has a basic input on/off of 0.5 ms. However, some applications may require additional filtering to compensate for noise spikes or switch bounce. The number of points that can be on at the same time is determined by a number of factors such as external voltage, ambient temperature, and orientation of the module and DIN rail. There is no derating at 125 VDC.

GE Intelligent Platforms / GE Fanuc GE Versamax

SKU 2174453  UPC 0550765990363

Input 125VDC POS/NEG logic isolated 16 point IC200M IC200MD IC200MDL

Troubleshooting and Product Information for IC200MDL632

Download product information, troubleshooting guides and operation manuals to get your PLC operational.

New IC200MDL632
Price: $295
3 In Stock
1 Year PDF Supply Warranty

*Need a Specific Revision?

Other IC200MDL632

Available Revisions:

Confirm Your Revision Number

1C200MDL632 , GEFIC200MDL632 , CIMIC200MDL632

The IC200MDL632

The IC200MDL632

Troubleshooting IC200MDL632

Troubleshooting information is available on IC200MDL632's website page; it also includes a datasheet user-manual and a wiring diagram.

Price and Availability for IC200MDL632

Price for IC200MDL632 is available by calling 1-800-360-6802 or by filling out our "fast quote". PDF Supply has over 30 years of experience with PLCs and has experience with the GE Fanuc Versamax Series dating back to 1995. IC200MDL632 comes with a minimum 1 year PDF Supply warranty. Returns are accepted for most unopened items. It does require pre-approval and RMA.

Repair your IC200MDL632

PDF Supply can repair your IC200MDL632 in 3-5 business days. And PDF Supply stands by all of its repairs with a 2 year customer satisfaction warranty.
