PDF Electric and Supply



Buy NowIC200MDL640
IC200MDL640 Wiring

Rated 4.5/5 based on 13 ratings.
  • IC200MDL640
  • IC200MDL640 Wiring

Product Description

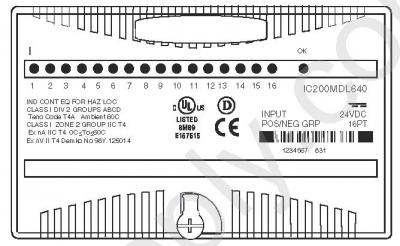

IC200MDL640 is a 24 VDC Positive Negative Logic Input Module with 16 Points manufactured by GE Fanuc for the VersaMax series
. The IC200MDL640 provides two sets of 8 discrete inputs and 16 bits of discrete input data. Inputs in each set can be either positive logic or negative logic. Positive logic inputs receive current from input devices and return the current on the common. Negative-logic inputs, on the other hand, receive current from the common and return current to the input device. Input devices are linked between the common terminals and the input terminals.

It is important to note that negative-logic functionality requires module version IC200MDL640C or higher. The IC200MDL640 is powered by the backplane. Intelligent processes for this module are facilitated by the CPU/ NIU. Individual LEDs emit green to show the on/off state of each input point. The OK LED only turns ON when backplane power is available.

The IC200MDL640 has a basic input on/off response time of 0.5ms. Some of its applications may, however, require additional filtering to compensate for conditions such as noise spikes or switch bounce.

GE Intelligent Platforms / GE Fanuc GE Versamax

SKU 2177457  UPC 0691882041252

In Stock! Input 24VDC POS/NEG logic (2 groups of 8) 16 points IC200M IC200MD IC200MDL

Troubleshooting and Product Information for IC200MDL640

Download product information, troubleshooting guides and operation manuals to get your PLC operational.

New IC200MDL640
Price: $156
33 In Stock
1 Year PDF Supply Warranty

*Need a Specific Revision?

Reman IC200MDL640
Price: $66
In Stock

2 Year PDF Supply Warranty

*What is Remanufactured?


Other IC200MDL640

Available Revisions:

Confirm Your Revision Number

1C200MDL640 , GEFIC200MDL640 , CIMIC200MDL640

The IC200MDL640

The IC200MDL640

Troubleshooting IC200MDL640

Troubleshooting information is available on IC200MDL640's website page; it also includes a datasheet user-manual and a wiring diagram.

Price and Availability for IC200MDL640

Price for IC200MDL640 is available by calling 1-800-360-6802 or by filling out our "fast quote". PDF Supply has over 30 years of experience with PLCs and has experience with the GE Fanuc Versamax Series dating back to 1995. IC200MDL640 comes with a minimum 1 year PDF Supply warranty. Returns are accepted for most unopened items. It does require pre-approval and RMA.

Repair your IC200MDL640

PDF Supply can repair your IC200MDL640 in 3-5 business days. And PDF Supply stands by all of its repairs with a 2 year customer satisfaction warranty.
