Product Description

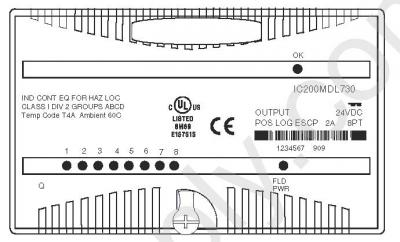

Manufactured by GE Automation and Controls, the IC200MDL730 is a VersaMax series discrete output module. This device provides a single group of eight output points, which can be positive logic or sourcing types. The output points on this module are responsible for switching loads to the power supply’s positive side, thereby providing electrical current to all loads.


In addition to the standard backplane power supply, this module will require an external direct current power source to enable output load switching. The backplane power source must be stable for a minimum of one second before this device can accept field power. If field power is applied before the backplane is stable, a false output point fault is likely to occur. The external power source is required to supply a sufficient amount of field power to this product in the event that a short circuit is detected. For further external power supply requirements, see the product documentation.


The IC200MDL730 provides fault detection diagnostics and can determine if an overload or short circuit has occurred. Each output point on this module has the following protection mechanisms: Electronic Short Circuit Protection (ESCP) and overcurrent protection; however, channel to channel isolation is not supported.


Each output point is capable of handling up to 2 amperes of current when operating at 30 volts direct current, and the entire module is capable of driving a maximum of 8 amperes. The amount of current consumed from the 5-volt backplane is 50 milliamps. The output voltage for this module is anywhere from 17.5 to 30 volts of direct current. The nominal output voltage is 24 volts of direct current, and a maximum output voltage drop of 0.5 volts is acceptable.

GE Intelligent Platforms / GE Fanuc GE Versamax

SKU 2173106  UPC 09283204017210

Output 24VDC POS LOGIC 2.0 amp per point(1 group o 8) with ESCP 8 points IC200M IC200MD IC200MDL

Troubleshooting and Product Information for IC200MDL730

Download product information, troubleshooting guides and operation manuals to get your PLC operational.

New IC200MDL730
Price: $321
4 In Stock
1 Year PDF Supply Warranty

*Need a Specific Revision?

Other IC200MDL730

Available Revisions:

Confirm Your Revision Number

1C200MDL730 , GEFIC200MDL730 , CIMIC200MDL730

The IC200MDL730

The IC200MDL730

Troubleshooting IC200MDL730

Troubleshooting information is available on IC200MDL730's website page; it also includes a datasheet user-manual and a wiring diagram.

Price and Availability for IC200MDL730

Price for IC200MDL730 is available by calling 1-800-360-6802 or by filling out our "fast quote". PDF Supply has over 30 years of experience with PLCs and has experience with the GE Fanuc Versamax Series dating back to 1995. IC200MDL730 comes with a minimum 1 year PDF Supply warranty. Returns are accepted for most unopened items. It does require pre-approval and RMA.

Repair your IC200MDL730

PDF Supply can repair your IC200MDL730 in 3-5 business days. And PDF Supply stands by all of its repairs with a 2 year customer satisfaction warranty.
