Product Description

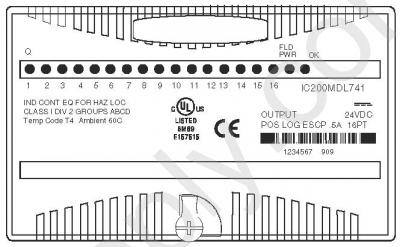

The IC200MDL741 is a VersaMax output module from GE Automation and Controls.
This device has a single grouping of 16 discrete signal output points, which can be one of two types: sourcing type or positive logic type. These output points are responsible for switching and supplying current to each load.


A separate 5V power supply is necessary for this module to function, and the amount of current drawn from the external power source is at most 75 milliamps. The external power supply must be able to provide enough field power to this module in the event of a short circuit. Otherwise, field power will drop below specified parameters and this module will not perform correctly.


While the IC200MDL741 has an optimal operational voltage of 24 volts of direct current, it can also function within the range of 18 to 30 volts of direct current. Resistive load current at 30 volts DC is 0.5 amps, and the 100-millisecond inrush current is a maximum of 2.0 amps. Output leakage is rated at 0.5 milliamps.


The IC200MDL741 has several protection measures in place, including Electronic Short Circuit Protection (ESCP), overcurrent protection, and free-wheeling diodes for each output point. The steady state overcurrent tripping point has a maximum range of 0.7 amps to 2.5 amps. In addition, this module does not support individually isolated channels.


The on and off response time for this device is at most 0.5 milliseconds. Thermal derating is also supported, and the number of output points that can be simultaneously active depends on specific conditions such as environment and voltage.

GE Intelligent Platforms / GE Fanuc GE Versamax

SKU 2177050  UPC 0337543010716

Output 24VDC POS LOGIC 0.5 amp per point(1 group of 16) with ESCP 16 points IC200M IC200MD IC200MDL

Troubleshooting and Product Information for IC200MDL741

Download product information, troubleshooting guides and operation manuals to get your PLC operational.

New IC200MDL741
Price: $210
10 In Stock
1 Year PDF Supply Warranty

*Need a Specific Revision?

Reman IC200MDL741
Price: $91
In Stock

2 Year PDF Supply Warranty

*What is Remanufactured?


Other IC200MDL741

Available Revisions:

Confirm Your Revision Number

1C200MDL741 , GEFIC200MDL741 , CIMIC200MDL741

The IC200MDL741

The IC200MDL741

Troubleshooting IC200MDL741

Troubleshooting information is available on IC200MDL741's website page; it also includes a datasheet user-manual and a wiring diagram.

Price and Availability for IC200MDL741

Price for IC200MDL741 is available by calling 1-800-360-6802 or by filling out our "fast quote". PDF Supply has over 30 years of experience with PLCs and has experience with the GE Fanuc Versamax Series dating back to 1995. IC200MDL741 comes with a minimum 1 year PDF Supply warranty. Returns are accepted for most unopened items. It does require pre-approval and RMA.

Repair your IC200MDL741

PDF Supply can repair your IC200MDL741 in 3-5 business days. And PDF Supply stands by all of its repairs with a 2 year customer satisfaction warranty.
