Product Description

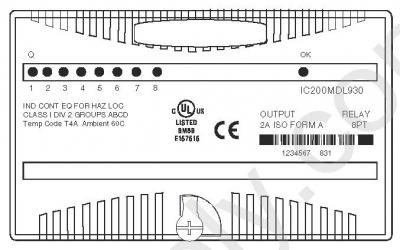

Produced by GE Automation as part of their VersaMax family, the IC200MDL930 is an output module with eight output points.
The output points on this module are Form A relay types, meaning they are compatible with both alternating current and direct current loads. The contact point for this device will be closed when the central processing unit is active and the output logic bit is set to “1.” The network interface unit and central processing unit both perform intelligent processing on the eight bits of output data.



The power needed for this module to function comes from the rack-mounted backplane. If any positive or negative load switching functionality is required, a secondary source of power will be necessary. The power draw from a 5v output backplane is 245 milliamps. The load current per output point varies but will be at least 10 milliamps. Output points on this device are open contact and therefor have no output leakage current. The relay type for each output point is a fixed coil with a moving armature, and the contact type is a silver alloy. The ON/OFF response times for the IC200MDL930 are slightly slower than other VersaMax modules at 10 milliseconds each. The switching frequency for inductive loads is measured at 20 cycles every minute.



In addition to the individually isolated output points, the IC200MDL930 also possesses channel to channel isolation. Protection measures, however, are not provided by this product, and no internal fuses or snubbers are present. Thermal derating does not apply to this device. Output point “on” and “off” status is displayed via a corresponding LED indicator light.

GE Intelligent Platforms / GE Fanuc GE Versamax

SKU 2175002  UPC 0913142764931

Output relay 2.0 amps per point isolated form A, 8 points IC200M IC200MD IC200MDL

Troubleshooting and Product Information for IC200MDL930

Download product information, troubleshooting guides and operation manuals to get your PLC operational.

New IC200MDL930
Price: $123
26 In Stock
1 Year PDF Supply Warranty

*Need a Specific Revision?

Other IC200MDL930

Available Revisions:

Confirm Your Revision Number

1C200MDL930 , GEFIC200MDL930 , CIMIC200MDL930

The IC200MDL930

The IC200MDL930

Troubleshooting IC200MDL930

Troubleshooting information is available on IC200MDL930's website page; it also includes a datasheet user-manual and a wiring diagram.

Price and Availability for IC200MDL930

Price for IC200MDL930 is available by calling 1-800-360-6802 or by filling out our "fast quote". PDF Supply has over 30 years of experience with PLCs and has experience with the GE Fanuc Versamax Series dating back to 1995. IC200MDL930 comes with a minimum 1 year PDF Supply warranty. Returns are accepted for most unopened items. It does require pre-approval and RMA.

Repair your IC200MDL930

PDF Supply can repair your IC200MDL930 in 3-5 business days. And PDF Supply stands by all of its repairs with a 2 year customer satisfaction warranty.
