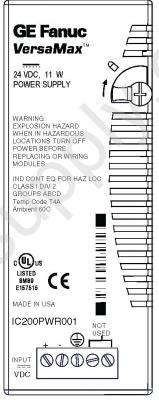

IC200PWR001 Wiring

Rated 4.3/5 based on 12 ratings.
  • IC200PWR001
  • IC200PWR001 Wiring

Product Description

The IC200PWR001 is a 24VDC power supply that offers backplane power to CPU, NIU, and I/O modules
. The IC200PWR001 can supply a maximum of 1.5 amps of output current via 3.3 volt and 5 volt outputs with up to 0.25 amps on the 3.3 volt output.

If the IC200PWR001 is mounted on the CPU or NIU, it can be considered the main power supply for the station. The IC200PWR001 can also be used as a complementary power supply when mounted on a Power Supply Booster Carrier. The input voltage of the IC200PWR001 is 18 to 30VDC, 24VDC nominal with 11 watts of input power. The IC200PWR001 has a holdup time of 10ms, inrush current of 20A at 24VDC, and 25A at 30VDC. Output voltage for the IC200PWR001 is 5VDC, 3.3VDC. The maximum total output current should not exceed 1.5A.

The IC200PWR001 offers protection for short circuit, overload, and reverse polarity. When wiring, DC- must be grounded to frame/earth ground. DC- is grounded to the power supply’s internal frame, which means floating power sources should not used.

GE Intelligent Platforms / GE Fanuc GE Versamax

SKU 2174226  UPC 0132274025219


Troubleshooting and Product Information for IC200PWR001

Download product information, troubleshooting guides and operation manuals to get your PLC operational.

New IC200PWR001
Price: $59
30 In Stock
1 Year PDF Supply Warranty

*Need a Specific Revision?

Reman IC200PWR001
Price: $26
In Stock

2 Year PDF Supply Warranty

*What is Remanufactured?


Other IC200PWR001

Available Revisions:

Confirm Your Revision Number

1C200PWR001 , GEFIC200PWR001 , CIMIC200PWR001

The IC200PWR001

The IC200PWR001

Troubleshooting IC200PWR001

Troubleshooting information is available on IC200PWR001's website page; it also includes a datasheet user-manual and a wiring diagram.

Price and Availability for IC200PWR001

Price for IC200PWR001 is available by calling 1-800-360-6802 or by filling out our "fast quote". PDF Supply has over 30 years of experience with PLCs and has experience with the GE Fanuc Versamax Series dating back to 1995. IC200PWR001 comes with a minimum 1 year PDF Supply warranty. Returns are accepted for most unopened items. It does require pre-approval and RMA.

Repair your IC200PWR001

PDF Supply can repair your IC200PWR001 in 3-5 business days. And PDF Supply stands by all of its repairs with a 2 year customer satisfaction warranty.
