Technical Specifications for IC200PWR102

ManufacturerGE Fanuc
Part NumberIC200PWR102
Product TypePower Supply Module
Extended FunctionalitiesSupported
Input Power27 Volts-Amps
Nominal Voltage120/240 Volts AC
Output Voltage5 Volts DC, 3.3 Volts DC
JumpersSupported (at 120 Volts AC only)
Maximum Output Current1.5 Amps

Product Description

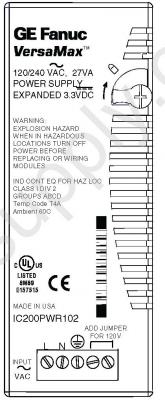

Made by General Electric Automation and Controls, the IC200PWR102 is a VersaMax expanded power supply unit with extended functionality.
This power supply unit is used to give power to several types of devices which are connected to the backplane—input and output modules, processing units, and network interface units, for example. The IC200PWR102 differs from many other VersaMax power units in that it operates primarily with alternating current (AC) rather than direct current (DC). While this device is capable of being a main power supply, it is also adept at functioning as a supplementary power source when attached to a power supply booster carrier.


The IC200PWR102 has different options in regards to input voltage. When a jumper is installed, the input voltage can range anywhere from 85 volts to 132 volts of alternating current, but 120 volts is nominal. When a jumper is not installed, the input voltage range is from 176 volts to 264 volts alternating current, with a nominal voltage of 240 volts. Vital note: A jumper should not be used in conjunction with 240 volts of input voltage. Doing so will cause damage to the power module and may result in dangerous conditions. The IC200PWR102 can safely operate at 120 volts AC without a jumper.


The input power for this product is 27 volt-amperes, and the frequency can range from 47Hz to 63Hz. The hold-up time is rated at 20 milliseconds; however, if this device is operating with 120 volts of input voltage without a jumper installed, this hold up time will not be accurate. Output voltages are 3.3 volts and 5 volts, totaling in a maximum of 1.5 amperes. Limited protection measures are supported for this device, including short circuit and overload protection.

The GE Fanuc IC200PWR102 power supply is a Versamax series power supply module that features extended functionalities. The IC200PWR102 power supply module is a key feature in GE Versamax programmable logic controllers (PLCs) because it can supply the power to several input modules, output modules, CPUs, and interface devices within the PLC system. This device can be used either as the main power supply in the PLC system or as a supplementary power supply. The IC200PWR102 power supply module’s input power rating is 27 Volts-Amps and it is protected against overloading and against short circuits. Most GE power supplies use DC power, but the IC200PWR102 power supply module runs on AC power while providing DC output power. The nominal voltage rating of the power supply is 120/240 Volts AC and it can put out 5 Volts DC or 3.3 Volts DC of output voltage.


The GE Fanuc Versamax IC200PWR102 power supply module can use jumpers as optional features. If it has a jumper, its input voltage range is 85 to 132 Volts AC. If the IC200PWR102 power supply module does not have a jumper, its input voltage range is 176 to 264 Volts AC. This power supply can operate safely at a nominal voltage of 120 Volts AC with or without a jumper, but it should never be used with a jumper at a nominal voltage of 240 Volts AC because this can cause severe damage to the power supply and serious injury or even death to the users. The maximum output current rating is 1.5 Amps.

Technical Information

The IC200PWR102

The IC200PWR102

Troubleshooting IC200PWR102

Troubleshooting information is available on IC200PWR102's website page; it also includes a datasheet user-manual and a wiring diagram.

Price and Availability for IC200PWR102

Price for IC200PWR102 is available by calling 1-800-360-6802 or by filling out our "fast quote". PDF Supply has over 30 years of experience with PLCs and has experience with the GE Fanuc Versamax Series dating back to 1995. IC200PWR102 comes with a minimum 1 year PDF Supply warranty. Returns are accepted for most unopened items. It does require pre-approval and RMA.

Repair your IC200PWR102

PDF Supply can repair your IC200PWR102 in 3-5 business days. And PDF Supply stands by all of its repairs with a 2 year customer satisfaction warranty.
