HE693RTD665

Rated 4.5/5 Based on 7 ratings.

Rate your purchase of the HE693RTD665

Horner Electric | Horner Electric | HE693RTD665 | Image

Horner Electric | Horner Electric | HE693RTD665 | Image Image of HE693RTD665

SKU 2178459  UPC 0508066877036

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

MSRP $3995

"Avg. Repair - 2 Days"

Repair Service

$1450

Save $2,545

Fast or Free!

2 Year warranty

*What is Fast Repair?

Order Today - Ships Today!

*US continental orders placed Monday-Friday before 4:30pm EST!

Lowest Price Guarantee

Other Available Revisions for the HE693RTD665 ABCDEFGHIJKLMNOPQRSTUVWXYZ

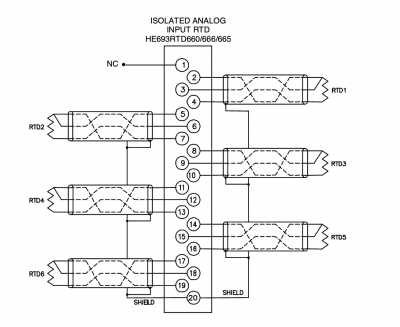

The HE693RTD665 allows RTD temperature sensors to be connected to the PLC directly without external signal processing such as transducers, transmitters, etc. All analog and digital processing of the RTD signal is performed on the module. These backplane-isolated (or bus-isolated) modules have programmable resolutions in increments of 0.05oC, 0.05oF,0.1oC, 0.1oF, 0.5oC, 0.5oF. The module features six channels whose temperature values are reported to the 6 %AI input registers. There are 6 %I alarm bits and one setpoint alarm for each channel. Alarm setpoints are configured for each channel using 6 %AQ registers. All modules feature support for the following RTD types: PT-100 (platinum, 100W at 0°C), Ni-120 (nickel, 120W at 0°C), Cu-10 (Copper,10W at 25°C), Pt-1000 (platinum, 1000W at 0°C), and TD5R Silicon (Microswitch).

Technical Specifications


Power Consumption (Typical) 200mA @ 5VDC
Number of Channels 6
Resolution 0.05°C, 0.05°F, 0.1°C,0.1°F, 0.5°C, or 0.5°F
Accuracy +/- 0.3°C
RTD Short Indefinite without damage
I/O Points Required 6%AI, 6% AQ, 16%I
Input Impedance >1000 Megohms
Input Transient Protection Suppression Diode
A/D Conversion Type 18 bit, Integrating
Update Time 50 channels/sec. (660)12.5 Channels/sec. (665/666)
Average RTD Current 330 microamps
Channel to Channel Tracking 0.1°C
Operating Temperature 0 to 60°C (32 to 140°F)
Relative Humidity 5% to 95% non-condensing
Channel-to-Bus Isolation 1500V AC
Channel-to-Channel Isolation 5V AC

Technical Information

Power Consumption (Typical) 200mA @ 5VDC
Number of Channels 6
Resolution 0.05°C, 0.05°F, 0.1°C,0.1°F, 0.5°C, or 0.5°F
Accuracy +/- 0.3°C
RTD Short Indefinite without damage
I/O Points Required 6%AI, 6% AQ, 16%I
Input Impedance >1000 Megohms
Input Transient Protection Suppression Diode
A/D Conversion Type 18 bit, Integrating
Update Time 50 channels/sec. (660)12.5 Channels/sec. (665/666)
Average RTD Current 330 microamps
Channel to Channel Tracking 0.1°C
Operating Temperature 0 to 60°C (32 to 140°F)
Relative Humidity 5% to 95% non-condensing
Channel-to-Bus Isolation 1500V AC
Channel-to-Channel Isolation 5V AC
  • Question: What is the HE693RTD665? Answer: The HE693RTD665 allows RTD temperature sensors to be connected to the PLC directly without external signal processing such as transducers, transmitters, etc. All analog and digital processing of the RTD signal is performed on the module. These backplane-isolated (or bus-isolated) modules have programmable resolutions in increments of 0.05oC, 0.05oF,0.1oC, 0.1oF, 0.5oC, 0.5oF. The module features six channels whose temperature values are reported to the 6 %AI input registers. There are 6 %I alarm bits and one setpoint alarm for each channel. Alarm setpoints are configured for each channel using 6 %AQ registers. All modules feature support for the following RTD types: PT-100 (platinum, 100W at 0°C), Ni-120 (nickel, 120W at 0°C), Cu-10 (Copper,10W at 25°C), Pt-1000 (platinum, 1000W at 0°C), and TD5R Silicon (Microswitch).
  • Question: What type of power consumption does HE693RTD665 use? Answer: The main power source for the HE693RTD665 uses 200mA @ 5VDC.
  • Question: Where should the components be mounted? Answer: All components must be mounted in a metal enclosure or the equivalent.
  • Question: Do the cables and analog signals should be shielded? Answer: All cables and analog signals must use shielded cable with a minimum of overall foil.
  • Question: Can I change the number of channels or the voltage on this device? Answer: Yes, you can. This is a 6 channel unit.
